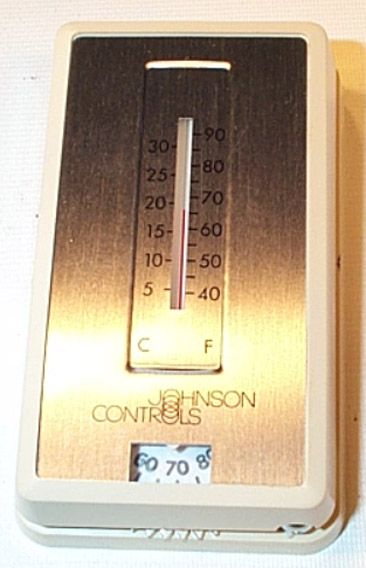

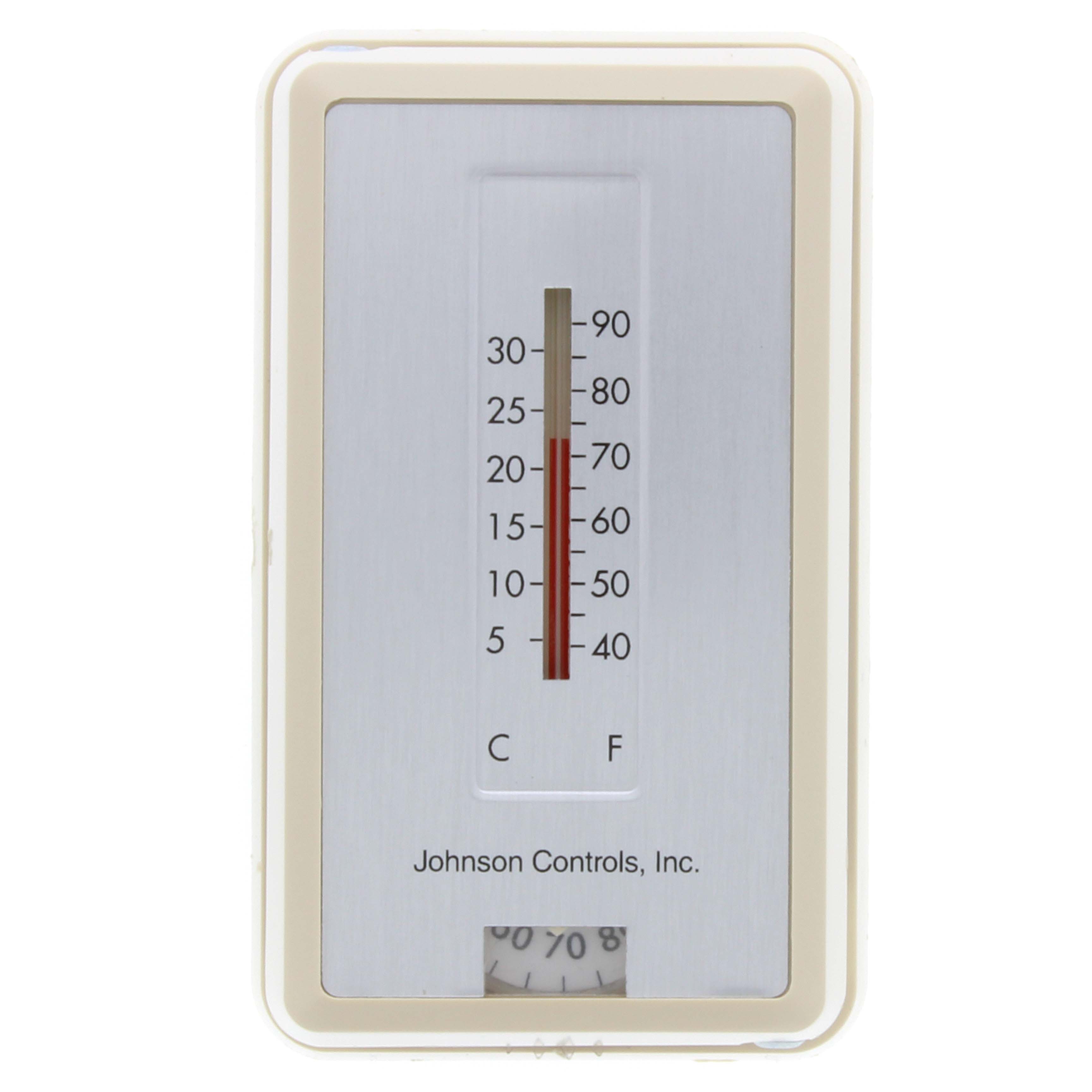

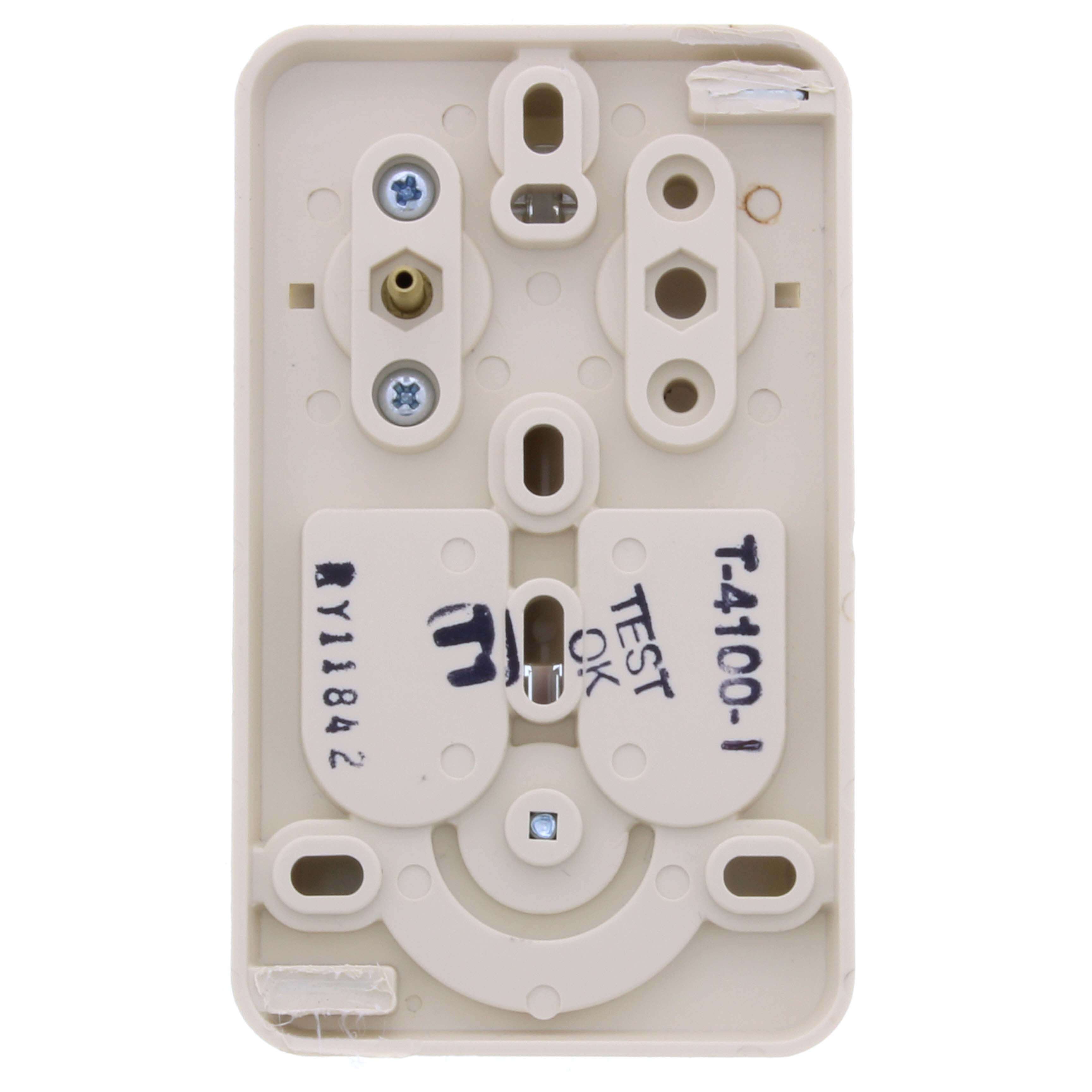

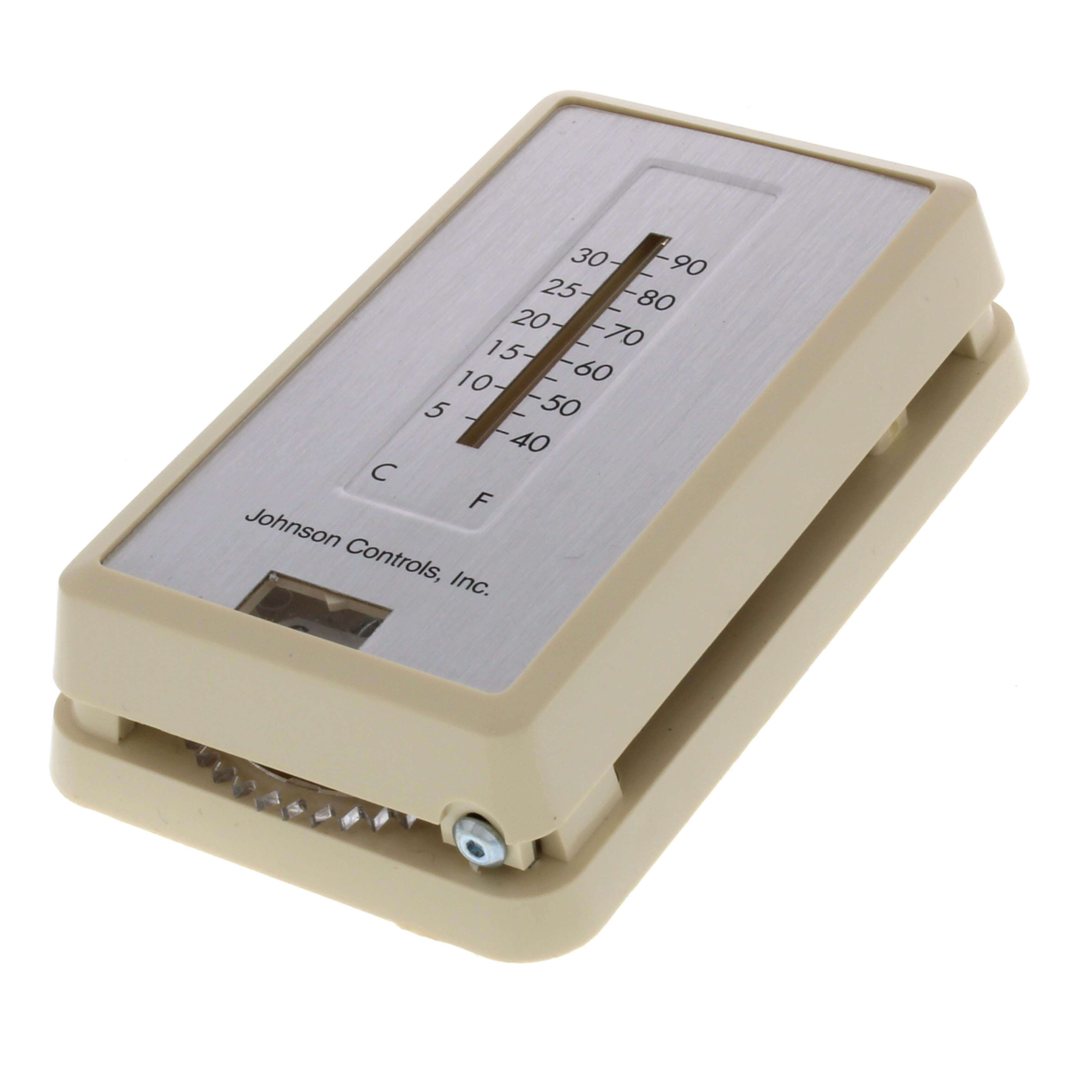

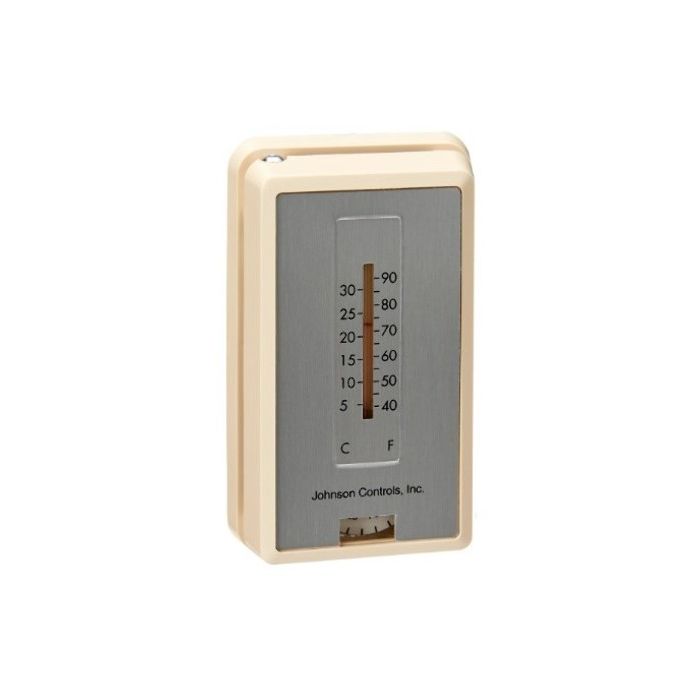

Johnson Controls T-4100-1 Pneumatic Thermostat 55 to 85 Degree F

Product Description

The Johnson Controls T-4100-1 is a vertical-mounted, direct acting pneumatic thermostat suitable for regulating temperatures between 55 and 85 degrees Fahrenheit. This thermostat is designed to provide reliable temperature control in HVAC systems.

• Simple vertical mount installation
• Temperature control range of 55 to 85 degrees Fahrenheit
• Direct acting operation for efficient performance

Product Highlights

This durable pneumatic thermostat is renowned for its reliability and simplicity. It mounts vertically and offers both exposed and concealed set point adjustments. It's equipped with a standard thermometer displaying both Fahrenheit and Celsius. Notably, it requires a single air connection with an optional remote restrictor, enhancing its ease of use and installation.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-4100
• MPN: T-4100-1

Technical Specifications

• Mount Type: Vertical
• Temperature Range: 55 to 85 degrees Fahrenheit
• Control Method: Direct Acting
• Element Type: Bimetal
• Max. Ambient Temperature: 135 degrees Fahrenheit
• Max. Air Pressure: 25 psi
• Air Connection: 5/32 in Barb
• Throttling Range: 1 to 5 psi
