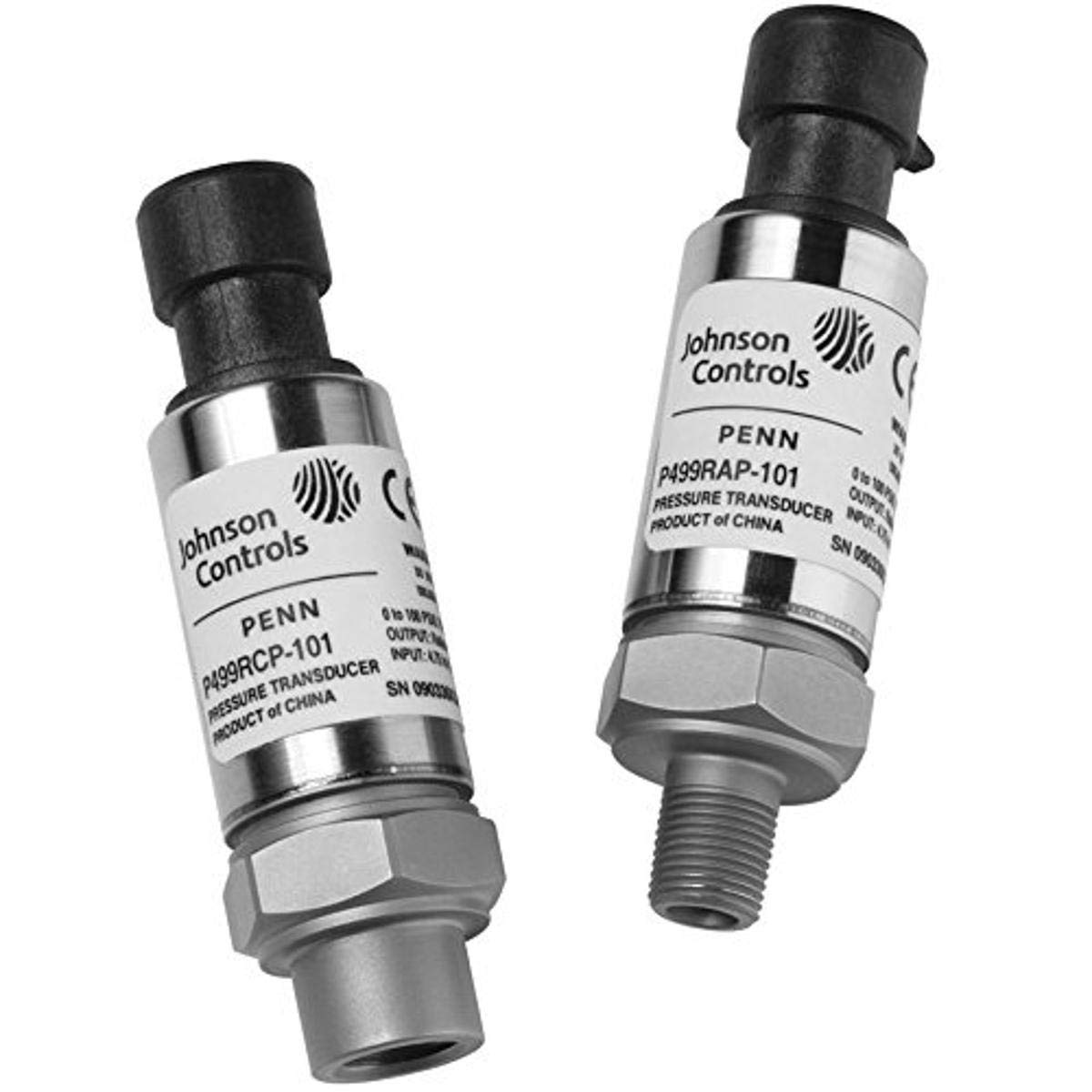

Johnson Controls P499VCP-107K Penn P499 Series Electronic Pressure Transducer Kit 0 to 10 VDC 1/4 inch SAE 45 Degree Flare Internal Thread 0 psi Minimum Pressure 750 psi Maximum Pressure

Product Description

The Johnson Controls P499VCP-107K is an electronic pressure transducer kit designed for commercial refrigeration and air conditioning systems. The transducer generates a 0 to 10 VDC output based on the sensed pressure, offering reliable performance across a pressure range of 0 to 750 psi.

• Constructed from 17-4PH stainless steel for high durability and leak-proof performance
• Environmentally protected electronics ensure stability in harsh conditions
• Operational over a broad temperature range, making it suitable for varying climatic conditions

Product Highlights

This transducer kit is optimized for use with both corrosive and non-corrosive pressure mediums that are compatible with 17-4PH stainless steel. It is exceptionally reliable in commercial HVAC applications, featuring a single-piece machined pressure port that eliminates the need for O-rings or welds, ensuring a durable, sealed system.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: P499VCP-107K

Technical Specifications

• Pressure Range: 0 psi to 750 psi
• Output: 0 to 10 VDC
• Connection Type: 1/4 inch SAE 45 degree flare internal thread
• Operating Temperature: -40 degrees Fahrenheit to 185 degrees Fahrenheit
• Construction Material: 17-4PH stainless steel
