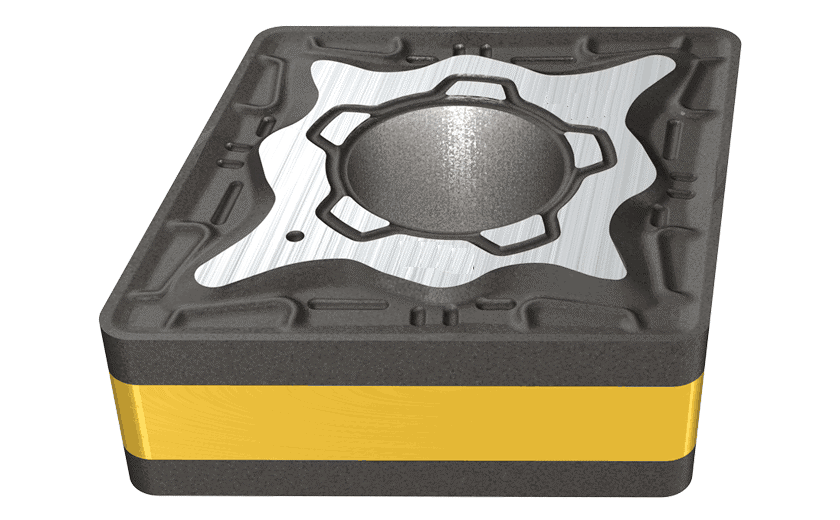

Iscar 5567464 CNMG-433-M3P IC8250 Carb Insert

Product Description

The Iscar CNMG-433-M3P IC8250 Carb Insert, MPN 5567464, is designed for various machining tasks. It is suitable for both finishing and roughing applications on stainless steel and steel materials. The negative clearance angle ensures efficient chip removal.

• Insert Material: Carbide
• Insert Thickness: 0.1870 inches
• Insert Coating: TiCN + Al2O3 + TiN

Product Highlights

This insert features a corner radius of 0.0470 inches and a size of 0.5000 inches, providing versatility in cutting operations.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: CNMG

Technical Specifications

• Insert Shape: 80° Diamond
• Min Depth of Cut: 0.0310 inches
• Max Depth of Cut: 0.2170 inches
• Min Feed: 0.0071 inches
• Max Feed: 0.0236 inches
• Insert Edge Length: 0.5080 inches
• Machining Application: Finishing-Roughing
