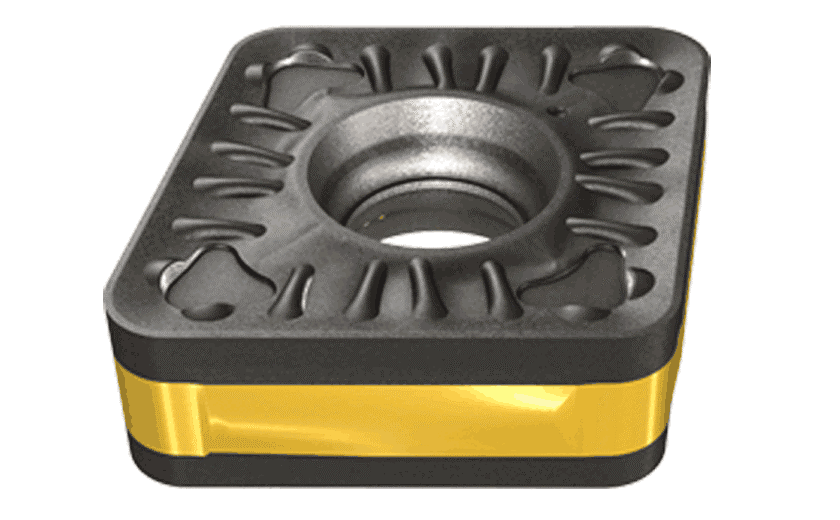

Iscar 5567070 COMG-643-R3P-IQ IC8150 Carb Insert for Heavy Roughing

Product Description

The Iscar COMG-643-R3P-IQ IC8150 Carb Insert is designed for heavy roughing applications. This carbide insert provides efficiency in machining steel and cast iron.

• Insert style: COMG
• Negative clearance angle
• Corner radius of 0.0470 inches

Product Highlights

This insert is suitable for fine finishing and semi roughing tasks. The unique coating enhances its durability and performance.

Product Information

Standard Information

• Brand: Iscar
• Insert Shape: 80 degree Diamond

Technical Specifications

• Insert Material: Carbide
• Work Material: Steel and Cast Iron
• Insert Thickness: 0.2500 inches
• Insert Edge Length: 0.7610 inches
• Min Depth of Cut: 0.1180 inches
• Max Depth of Cut: 0.4720 inches
• Min Feed: 0.0118 inches
• Max Feed: 0.0315 inches
• Insert Coating: TiCN, Al2O3, TiCN, and TiN
• Machining Application: Fine Finishing and Semi Roughing
