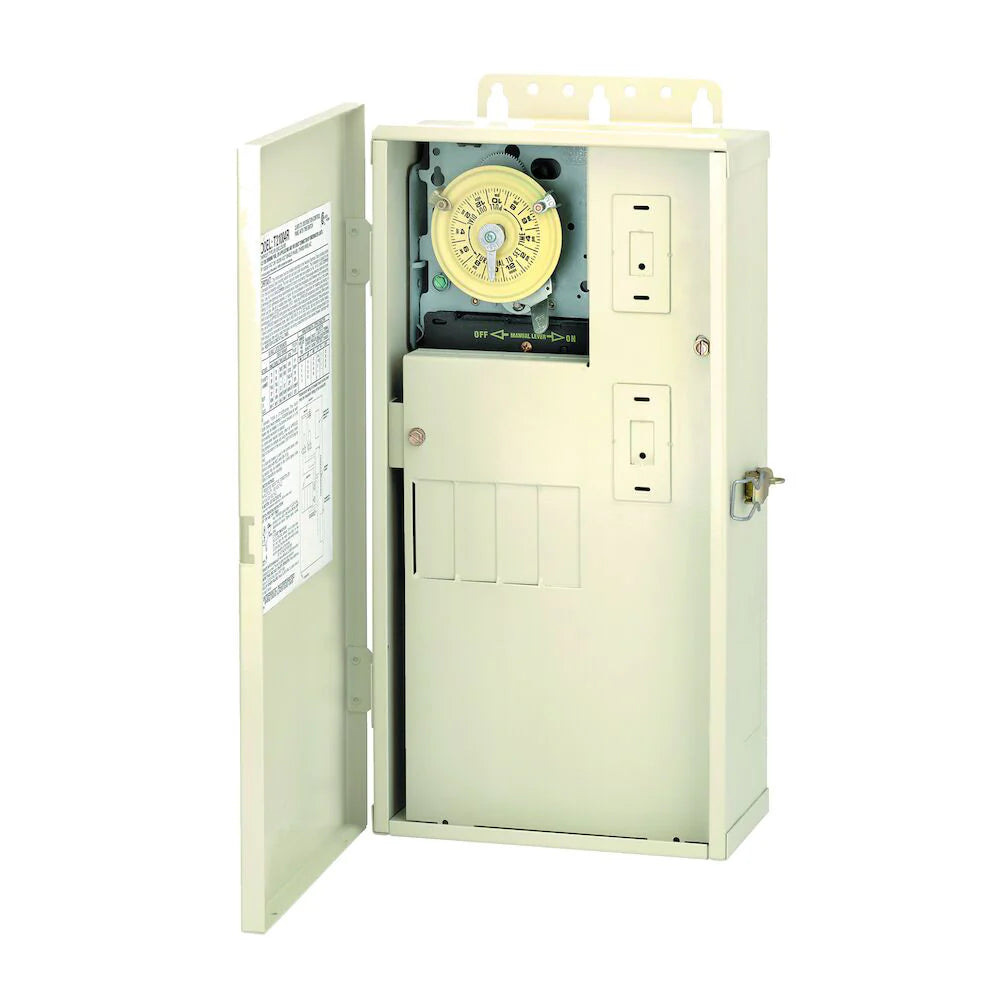

Intermatic T21004R Control Panel 240 VAC 60 A DPST Load Center

Product Description

The Intermatic T21004R is a control panel designed for 240 volt AC applications. It offers a load center and is rated for 60 amps with a DPST design. This unit is suitable for various installation types, including pool and spa equipment, lights, and motors. It provides robust performance in demanding environments.

• Accepts multiple types of interchangeable breakers
• Includes provisions for adding switches and GFCIs
• Features a durable NEMA 3R enclosure

Product Highlights

The T21004R can function as a standalone load center, or you can integrate a mechanical timer for a comprehensive control solution.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part Number: T21004R

Technical Specifications

• Catalog Number: T21004R
• Input Voltage: 208-277 V
• Amperage Rating: 60 A
• Frequency: 60 Hz
• Dimensions: 16-3/4 inches high x 8-7/8 inches wide x 4-3/8 inches deep
• Material: Metal
• Enclosure Rating: NEMA 3R
• Operating Temperature: -40 to 130 degrees Fahrenheit
