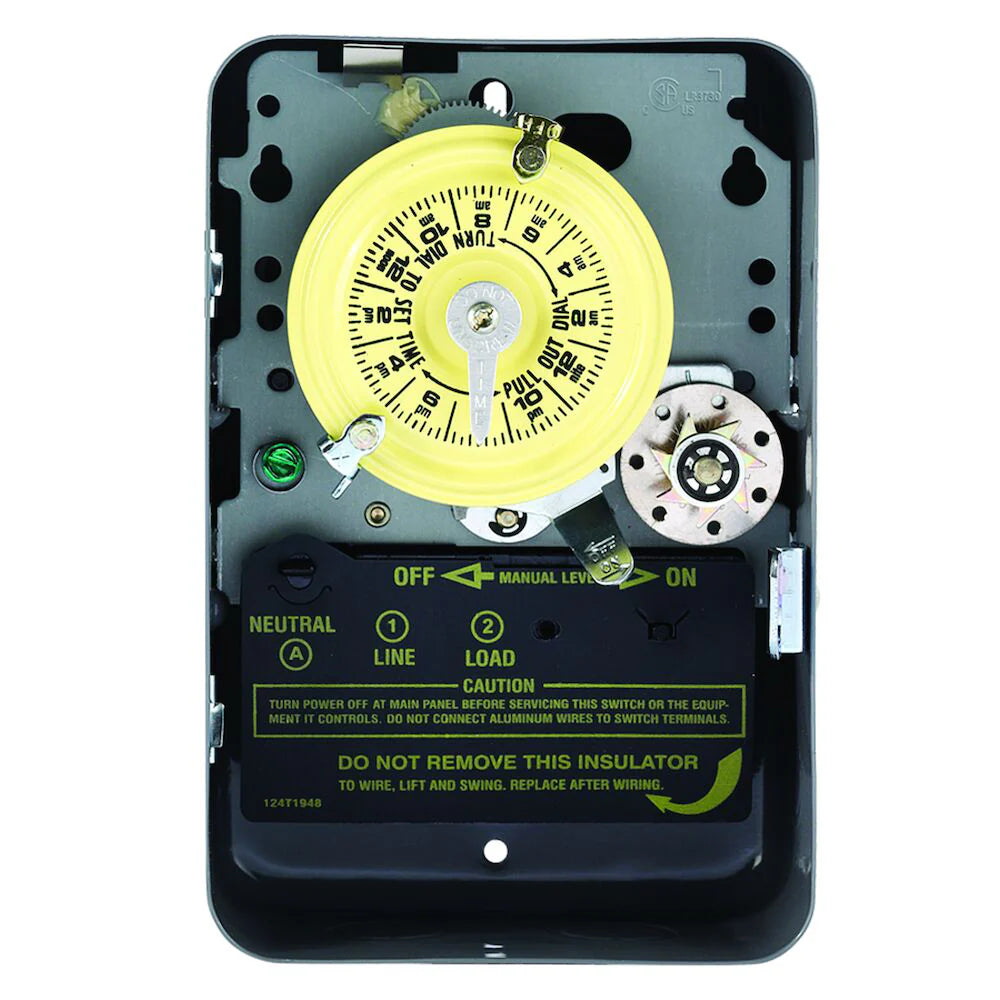

Intermatic T171 NEMA 1 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch

Product Description

The Intermatic T171 is a NEMA 1 mechanical time switch designed to handle electrical loads up to forty amps per pole. Ideal for both commercial and residential use, it provides reliable scheduling capabilities with up to ten on/off settings daily. This model also features a skip day option for shifting operational schedules as needed.

• Handles up to 40 amps per pole
• 24-hour control with programmable schedules
• Includes ON/OFF trippers and skip screws

Product Highlights

Compact design suitable for wall mounting that accommodates various electrical applications.

Product Information

Standard Information

• Manufacturer: Intermatic
• MPN: T171

Technical Specifications

• Voltage: 125 Volt
• Amperage: 40 Amp
• Frequency: 60 Hz
• Dimensions: 7-7/8 inches height x 5-1/8 inches width x 3-7/16 inches depth
• Enclosure: NEMA 1
• Mounting Type: Wall Mount
• Operating Temperature: -40 to 130 degrees F
• Applications: Commercial, Industrial, Residential, Outdoor, HVACR
