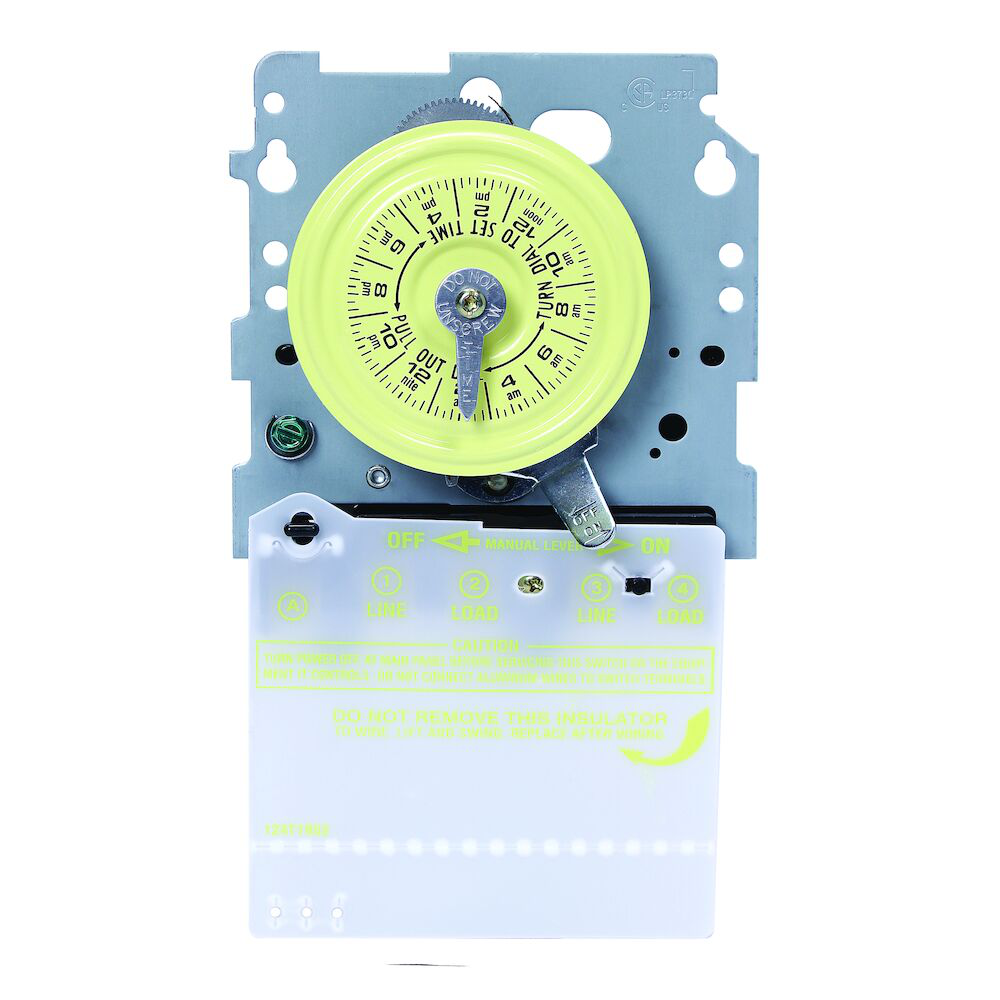

Intermatic T104M Time Switch 208 to 277 VAC 60 Hz 40 Amp DPST

Product Description

The Intermatic T104M is a time switch mechanism designed for 208 to 277 VAC applications. This device is rated for 40 Amps and operates at a frequency of 60 Hz. It is suitable for both commercial and residential use, allowing for precise control over lighting, HVAC systems, and other electrical loads.

• Handles electrical loads up to 40 Amps per pole
• Allows up to 12 ON/OFF operations each day
• Includes manual override for convenience

Product Highlights

This time switch is reliable and user-friendly, ideal for a range of applications including indoor lighting control, filter pumps, and heat pump scheduling.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T104M

Technical Specifications

• Voltage: 208-277 VAC
• Wattage: 3 Watt
• Frequency: 60 Hz
• Contact Configuration: DPST
• Contact Rating: 40 AMP @ 120 - 480 VAC (Resistive)
• Operating Temperature: -40 to +130 degrees F
• Warranty Length: 1 year
• Country of Origin: Mexico
