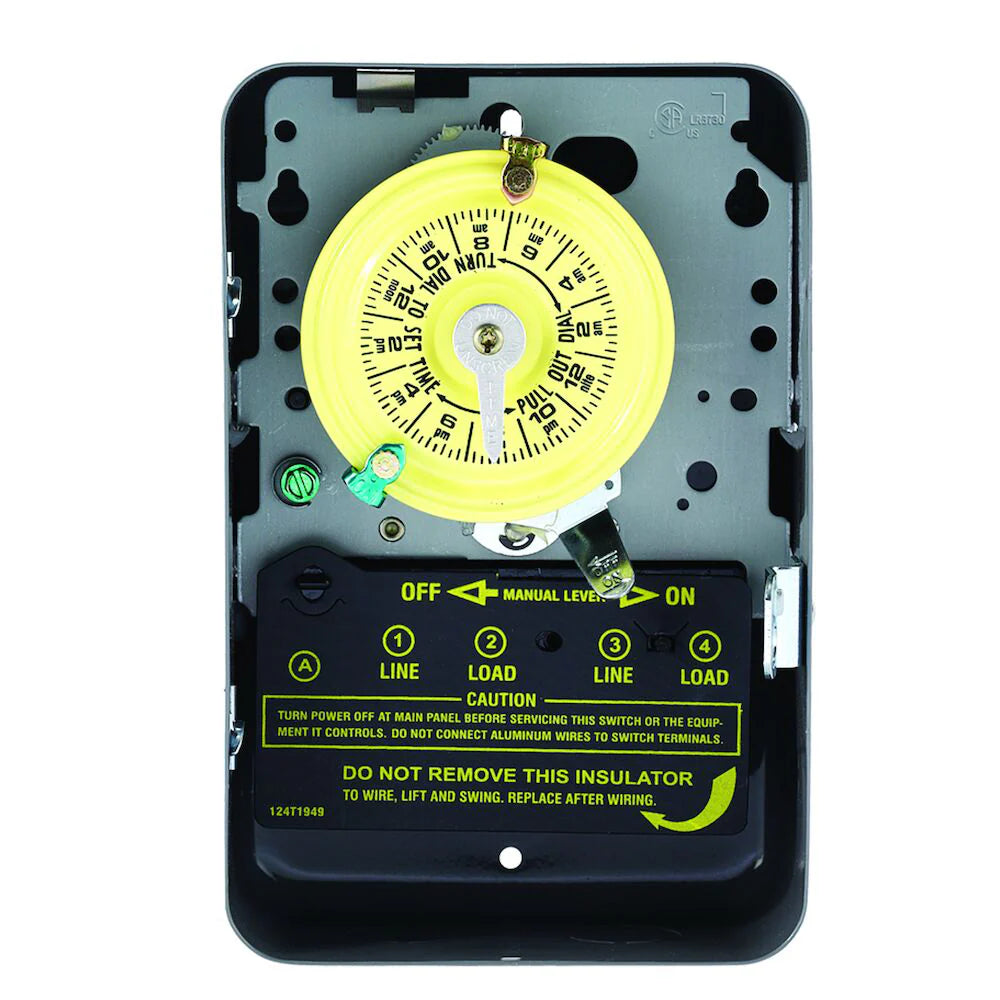

Intermatic T104 24-Hour Mechanical Time Switch 208-277 Volts

Product Description

The Intermatic T104 is a 24-hour mechanical time switch designed for a variety of applications. This timer operates at 208 to 277 volts and is rated for five horsepower. It is suitable for controlling electrical loads in both commercial and residential settings. The T104 can manage loads up to 40 amps and provides 12 programmable ON/OFF cycles per day. Equipped with a manual override feature, it adds flexibility to your scheduling needs.

• Operates at 208 to 277 volts
• Handles up to 40 amps resistive load
• Manual override for added control

Product Highlights

The T104 accommodates diverse applications, including industrial machinery, HVAC systems, and lighting control.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T104

Technical Specifications

• Voltage Rating: 208-277 VAC
• Amperage Rating: 40 A
• Horsepower: 5 hp
• Number of Poles: 2
• Enclosure Type: NEMA 1
• Operating Temperature: -40 to 130 F
• Mounting Type: Wall
• Time Setting: 24 hr
