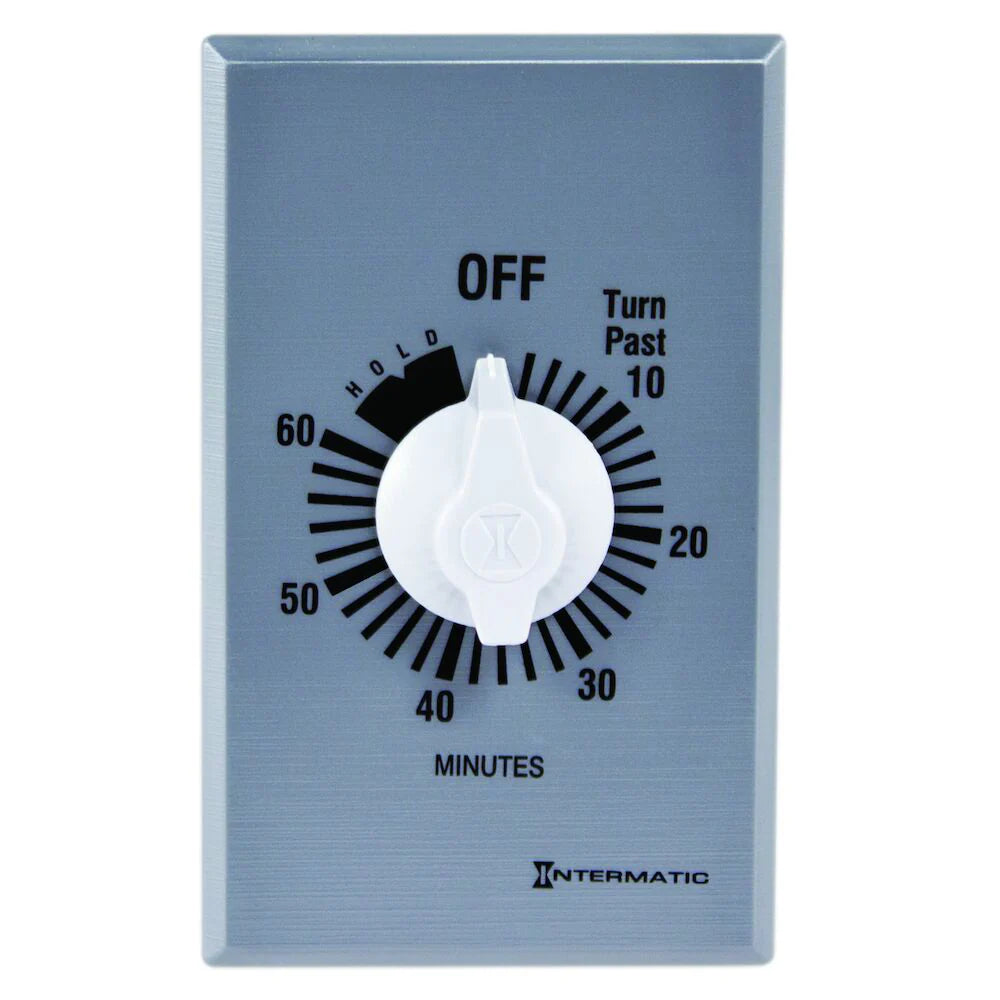

Intermatic FF60MHC FF Series Auto Off Commercial Mechanical Spring Wound Timer 60 min 125/257 VAC

Product Description

The Intermatic FF60MHC is a spring wound timer designed for commercial use. It operates at a voltage of 125/257 VAC and features a 60-minute timing cycle. This timer does not require external power for operation, making it suitable for various applications including lighting, motors, and HVAC systems.

• 60-minute timer with hold feature
• SPST (Single-Pole Single-Throw) contact configuration
• Quick installation with teeter-type terminals

Product Highlights

This timer is designed to replace standard wall switches and automatically limits the ON times for energy-consuming devices.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: FF60MHC

Technical Specifications

• Voltage Rating: 125/257 VAC
• Amperage Rating: 15 A
• Dimensions: 2.79 inches H x 1.6 inches W x 1.19 inches D
• Time Setting: 60 min
• Temperature Rating: -40 to 104 deg F
• Horsepower: 1 hp, 2 hp
• Mounting Type: Wall
• Action: 1 x SPST
