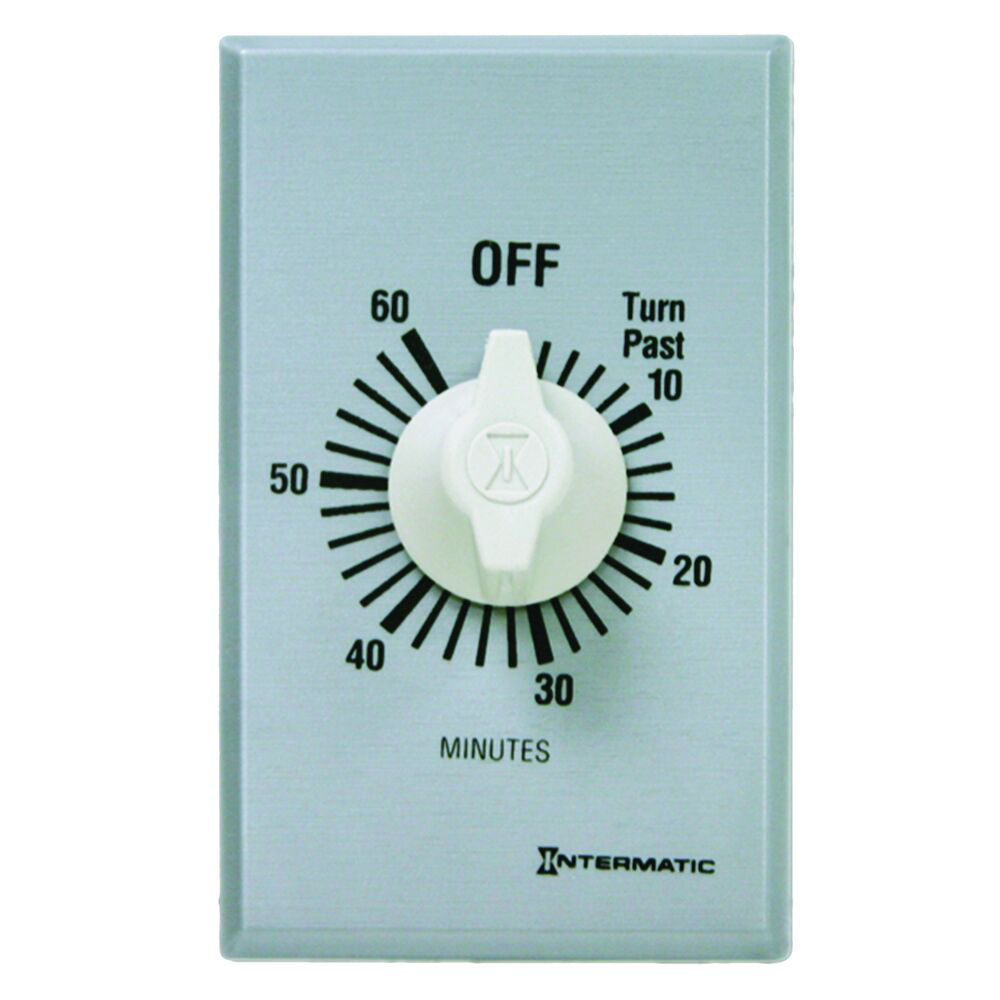

Intermatic FF60MC 60 Minute 125-277 VAC 60 Hz SPST Countdown Timer

Product Description

The Intermatic FF60MC is a mechanical countdown timer designed for commercial use. Operating between one hundred twenty-five and two hundred seventy-seven volts AC, it supports various applications. This timer can automatically limit ON times for fans, lights, and motors. It replaces standard wall switches and does not require electrical power to function. The design includes a brushed metal look plate that meets NEC standards.

• 60-minute time setting for easy management of energy consumption.
• SPST contact type for simple operation.
• No electricity needed, ensuring reliability during outages.

Product Highlights

This timer is ideal for applications where precise ON time is critical, such as in HVAC, lighting controls, and electric motors.

Product Information

Standard Information

• Catalog Number: FF60MC
• Manufacturer: Intermatic, Inc

Technical Specifications

• Voltage Rating: 125 to 277 VAC
• Amperage Rating: 15 Amp
• Contact Rating: 20 Amp at 125 VAC (Resistive)
• Frequency: 50/60 Hz
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Actions: SPST
• Country of Origin: Tunisia
• Warranty: 1 year
