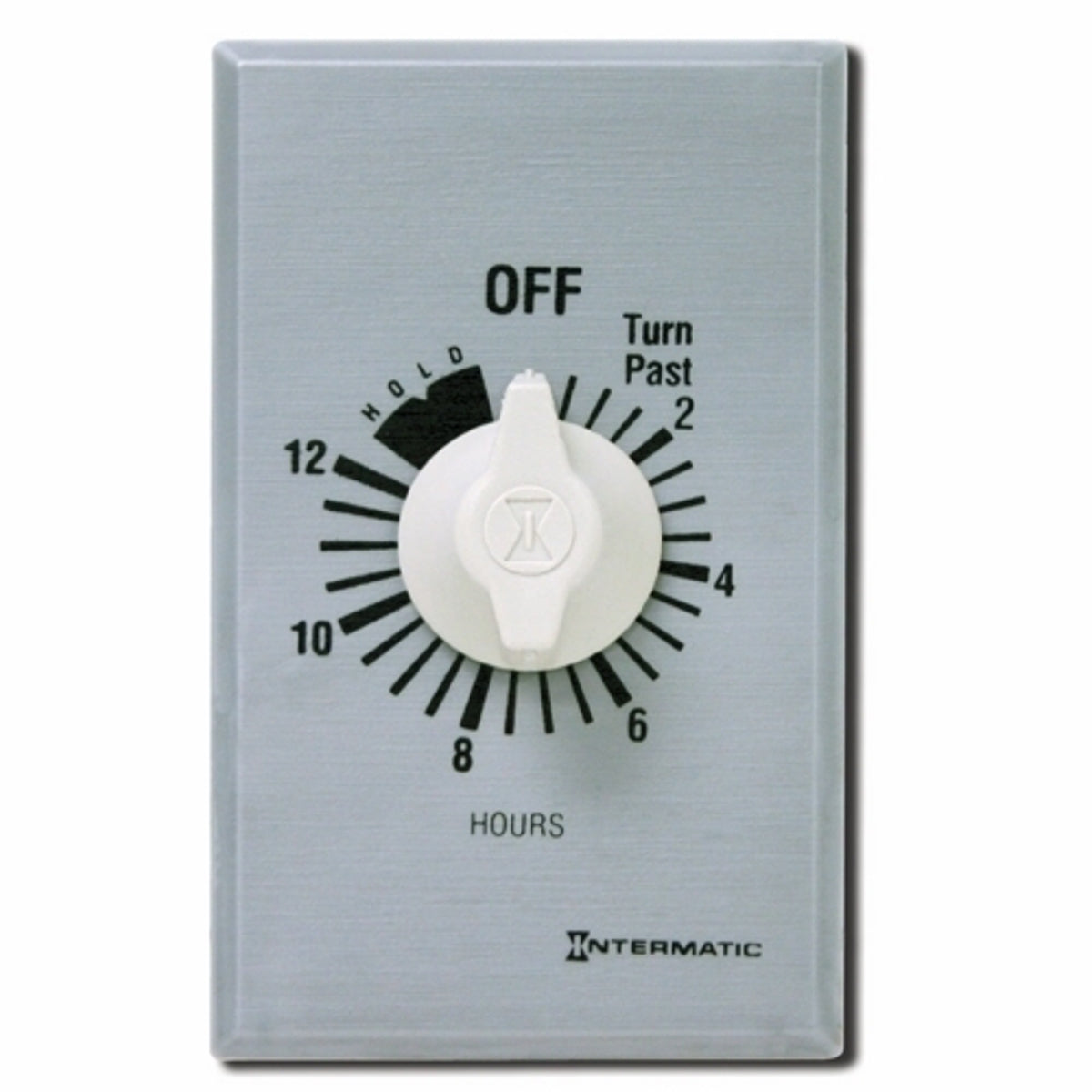

Intermatic FF12HHC TIMER WND SPR 12HR 125/257VAC 1NO-SPST

Product Description

The Intermatic FF12HHC is a spring wound timer designed for 12-hour operation. It is suitable for use with voltages of 125 to 277 VAC and is ideal for controlling various devices such as lighting and fans. This timer includes a hold feature to pause the timing cycle as needed.

• 12-hour timer with hold functionality
• SPST (Single-Pole Single-Throw) configuration
• Compatible with incandescent, fluorescent, CFL, and LED lighting

Product Highlights

The FF12HHC is a mechanical timer that does not require electricity to operate. It automatically limits the ON time for energy-consuming devices, providing reliable performance in commercial settings.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FF12HHC

Technical Specifications

• Voltage Rating: 125/277 VAC
• Amperage Rating: 15 A
• Horsepower: 1 hp, 2 hp
• Contact Form: 1NO/SPST
• Temperature Rating: -40 to 104 degrees F
• Dimensions: 2.79 inches H x 1.6 inches W x 1.19 inches D
• Mounting Type: Wall
