Intermatic ET90215C Switch TMR ELEK 1 SEC TO 365 DAYS 1, 2HP

Product Description

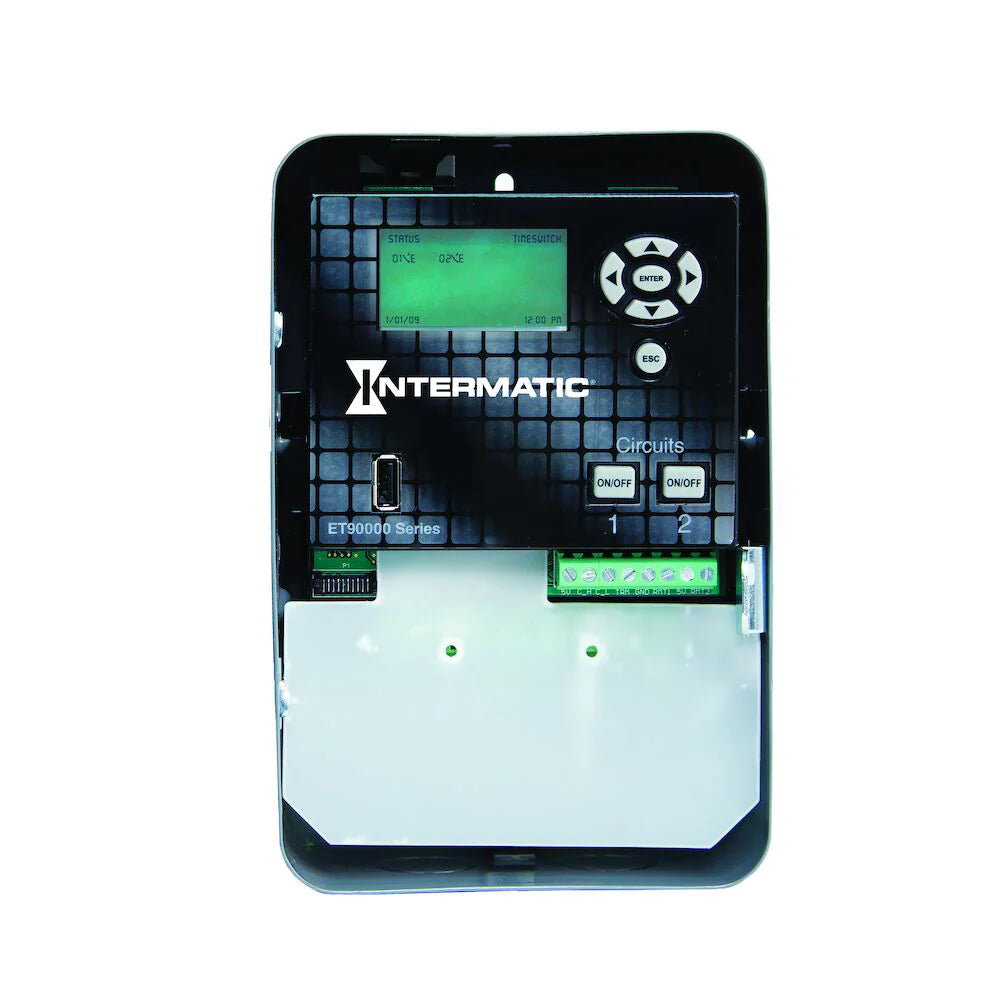

The Intermatic ET90215C is an electronic timer switch that allows scheduling from one second to three hundred sixty-five days. It operates at 120 to 277 VAC and is suitable for controlling electrical devices such as lighting and motors. This unit combines powerful functionality with user-friendly controls and is designed for various applications.

• Programmable from 1 second to 365 days.
• USB and Ethernet ports for easy updates and control.
• Compatible with multiple circuits up to 20 amperes.

Product Highlights

The ET90215C electronic timer switch offers a flexible scheduling solution, perfect for diverse applications ranging from residential to industrial use.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part Number: ET90215C

Technical Specifications

• Type: Astronomic
• Operation Mode: 365 days
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Horsepower Rating: 1, 2 hp
• Dimensions: 7.8 in H x 5.1 in W x 3 in D
• Enclosure Type: NEMA 1
• Contact Form: 1NO-1NC, SPDT
• Temperature Rating: -40 to 120 degrees F
