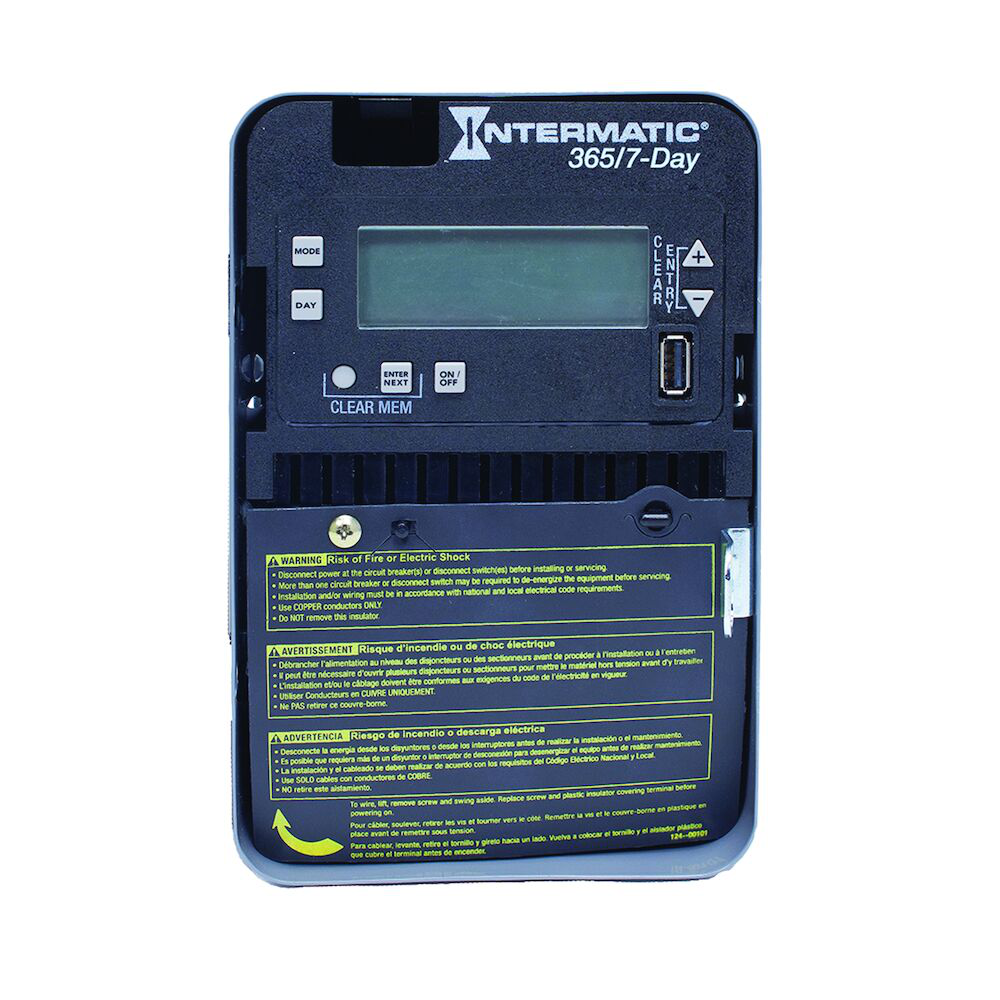

Intermatic ET2705C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp SPST Electronic Control

Product Description

The Intermatic ET2705C is an electronic control designed for reliable on-off scheduling in various settings. It operates within a voltage range of one hundred twenty to two hundred seventy-seven VAC and features a sturdy NEMA 1 steel case. The control is ideal for managing indoor lighting and machinery when precise timing is crucial.

• 100-hour backup with supercapacitor eliminates battery dependency
• Up to 96 programmable on/off events
• Includes 50 holiday blocks for independent scheduling

Product Highlights

This timer provides easy programming and robust functionality, suitable for demanding schedules.

Product Information

Standard Information

• Brand: Intermatic
• MPN: ET2705C

Technical Specifications

• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 30 A
• Contact Configuration: 1 NO
• Number of Poles: 1
• Temperature Rating: -40 to 155 degrees F
• Dimensions: 7-7/8 inches H x 5-1/8 inches W x 3-7/16 inches D
• Enclosure Type: Type 1 Steel
• Frequency Rating: 50/60 Hz
