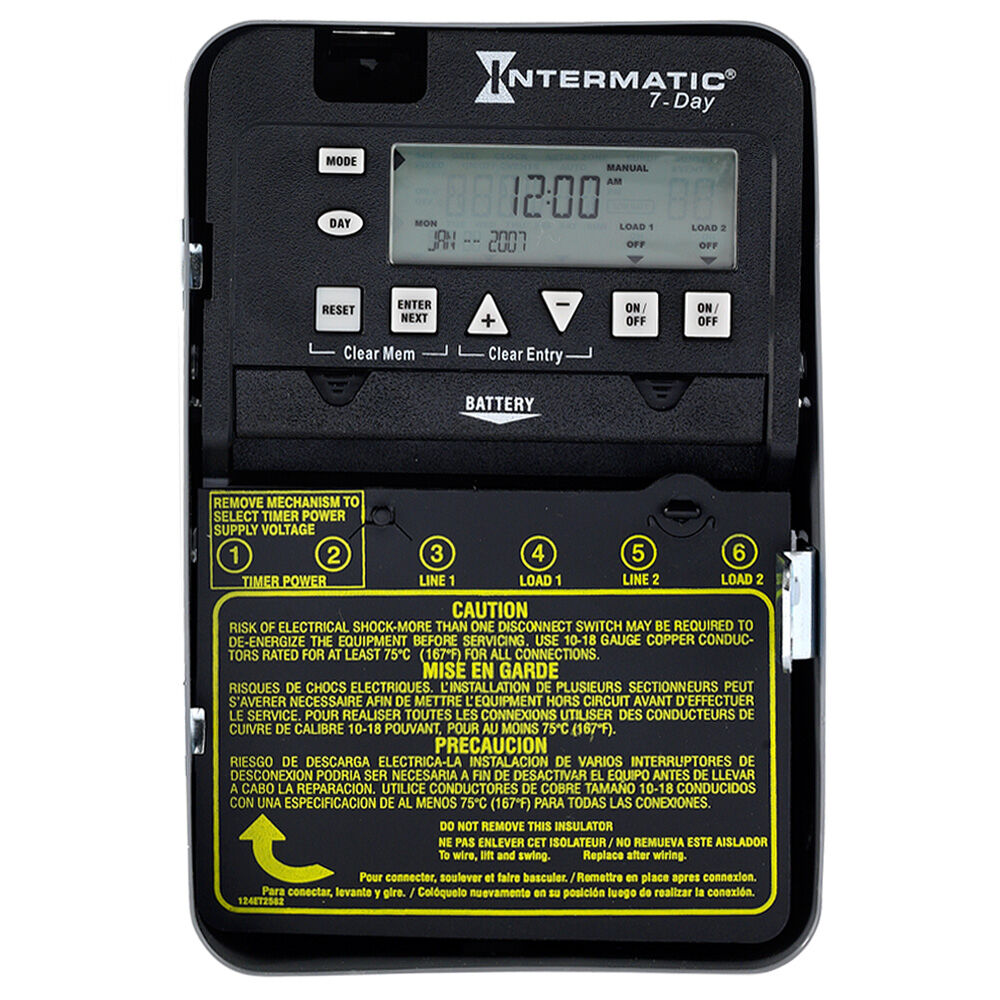

Intermatic ET1725C SWITCH TMR ELEK 120/277VAC 1, 2HP 30A

Product Description

The Intermatic ET1725C is an electronic timer switch designed for demanding industrial applications. Offering a range of functionalities, this timer operates on 120 to 277 volts and supports up to 30 amps. It is suitable for both lighting and HVAC systems, providing reliable control for various electrical loads.

• Selector switch for input voltage between one hundred twenty and two hundred seventy-seven volts
• Up to twenty-eight programmable events
• Manual override for flexible operation

Product Highlights

This timer features independent 7-day programming suitable for applications requiring diverse load switching each day. It includes automatic daylight saving time adjustments and can handle a variety of loads including lighting and HVAC. The ET1725C can be mounted easily in restricted spaces and provides accurate load control to help reduce energy costs.

Product Information

Standard Information

• Manufacturer: Intermatic
• Manufacturer Part Number: ET1725C

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 30 A
• Number of Poles: 1
• Horsepower: 1, 2 hp
• Operation Mode: 7 days
• Enclosure Type: NEMA 1 Steel
• Temperature Rating: -40 to 155 degrees F
• Dimensions: 200 mm H x 130.2 mm W x 87.3 mm D
