Product Description

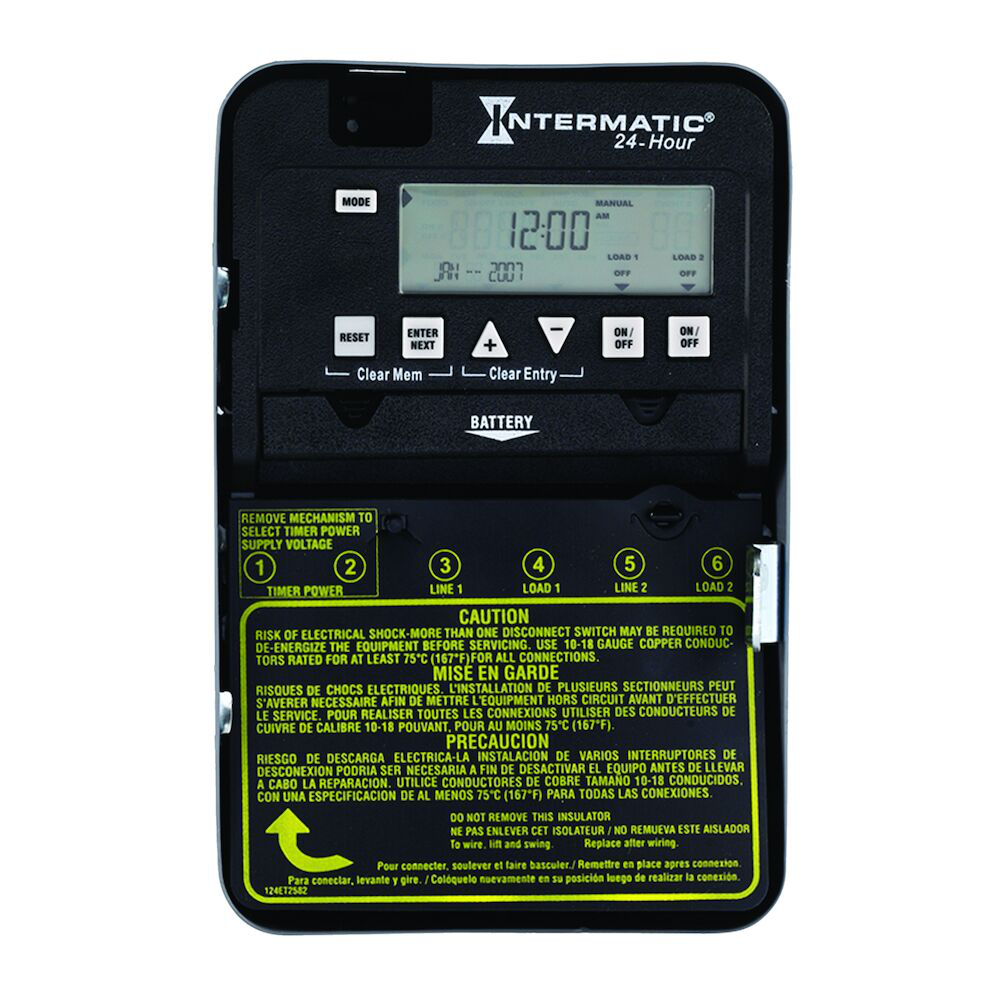

The Intermatic ET1125C is a 24-hour electronic time switch designed for precise control in residential and commercial settings. It operates with two circuits and can handle loads of up to thirty amps at voltages ranging from one hundred twenty to two hundred seventy-seven volts.
- Programmable up to twenty-eight events per day
- SPST (Single Pole, Single Throw) contact configuration
- Battery backup for reliable operation during power outages
Product Highlights
This time switch provides reliable and accurate scheduling for lighting, HVAC systems, and other electrical devices.
Product Information
Standard Information
-
Brand: Intermatic
-
MPN: ET1125C
Technical Specifications
-
Catalog Number: ET1125C
-
Amperage Rating: 30 A
-
Voltage Rating: 120 - 277 V
-
Mounting Type: Wall Mount
-
Contact Rating: 30 A at 120/240 VAC (Resistive)
-
Number of Circuits: 2
-
Temperature Rating: -40 to 155 degrees F
-
Enclosure: NEMA 1 Steel
-
Width: 5.125 inches
-
Depth: 3.437 inches
-
Height: 7.875 inches
