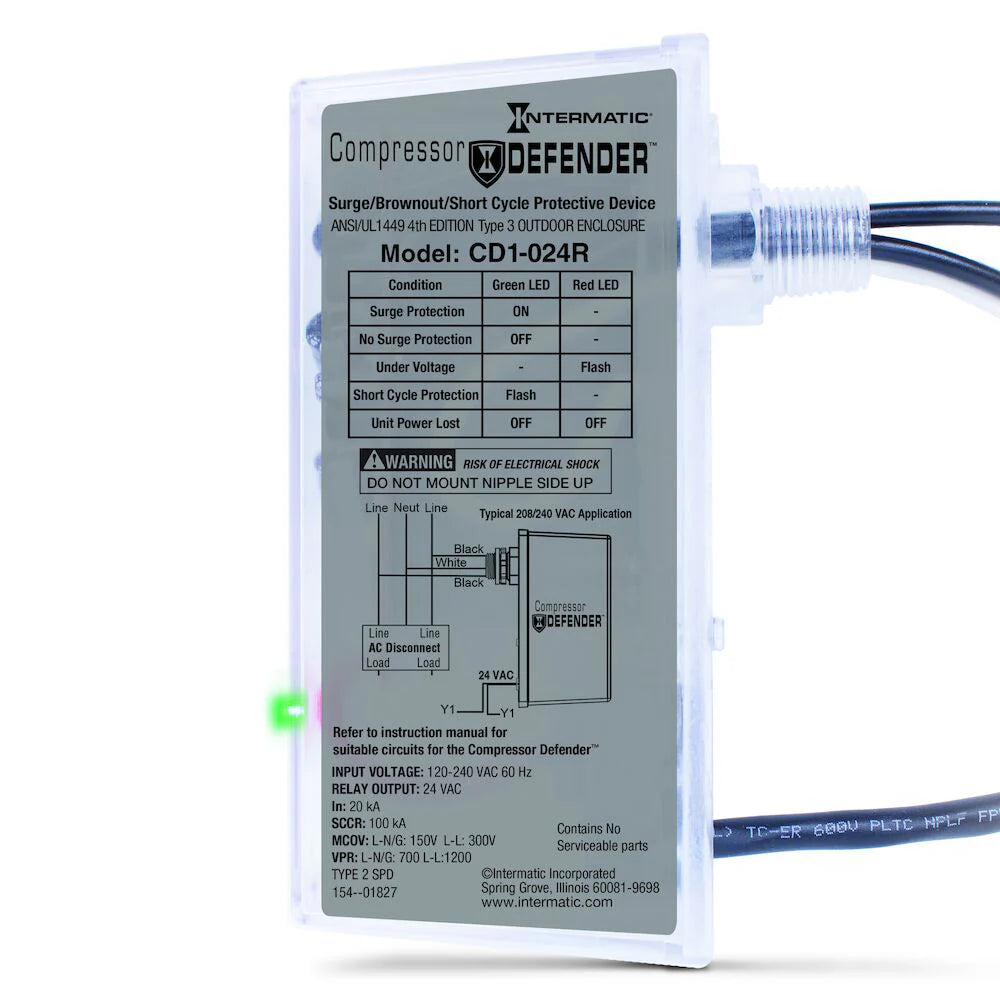

Intermatic CD1-024R Compressor Defender - Condenser Surge Protector - 120-240 V

Product Description

The Intermatic CD1-024R Compressor Defender is a surge protection device designed to protect HVAC compressors from power disturbances. This device safeguards against brownouts and surges, ensuring consistent operation of your air conditioning or heat pump. It is suitable for residential and light commercial applications.

• UL1449 3rd Edition-certified surge protection
• Includes undervoltage and overvoltage protection
• Easy installation in condensing units or at electrical disconnects

Product Highlights

This Compressor Defender provides robust protection against electrical disturbances, ensuring long-term reliability of HVAC systems.

Product Information

Standard Information

• Brand: Intermatic
• MPN: CD1-024R

Technical Specifications

• Voltage Rating: 120-240 VAC
• Continuous Operating Voltage: 150V (line-to-neutral), 300V (line-to-line)
• Surge Protection Rating: 700V (L-N/G), 1200V (L-L)
• Nominal Discharge Current: 10,000 Amps
• Short Circuit Current Rating: 20,000 Amps
• Operating Temperature: -40 to 158 degrees F
• Warranty: 3 years
• Enclosure Type: Type 3 NEMA
