Product Description

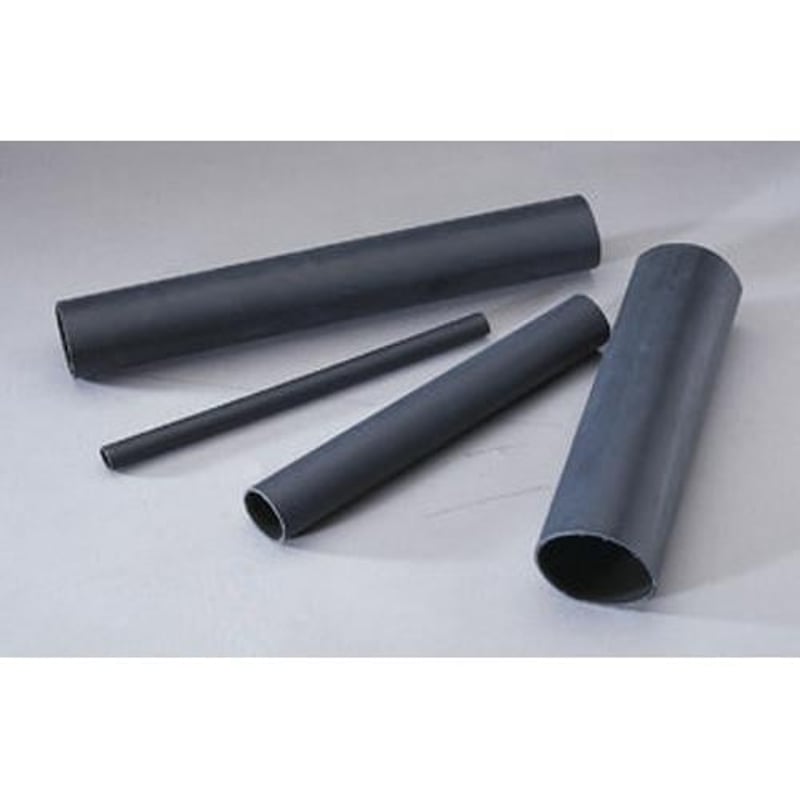

The Ideal 46-352 is a heavy-wall heat shrink tubing designed for effective insulation and protection of electrical splices. This product is suitable for various applications and provides reliable performance in harsh environments. Made from irradiated cross-linked polyolefin, it has a shrink ratio of 3:1 and is capable of continuous operation temperatures ranging from negative fifty-five to one hundred ten degrees Celsius.
- Shrink ratio of 3:1 for versatile usage
- Thermal stability with a minimum shrink temperature of one hundred twenty degrees Celsius
- Compatible with wire sizes from one to three-aught AWG
Product Highlights
This heat shrink tubing meets various industry standards and offers maximum flame retardancy for safety in electrical applications.
Product Information
Standard Information
-
Brand: Ideal
-
Model No: TS-46-1100
Technical Specifications
-
Thickness: 0.120 inches
-
Length: 9 inches
-
Shrink Temperature: 120 - 250 degrees Celsius (200 degrees Celsius recommended)
-
Volume Resistivity: 10^13 ohm-cm minimum
-
Dielectric Strength: 500 volts/mil (20 kV minimum)
-
Heat Aging: 500% (168 hours at 175 degrees Celsius tensile strength)
-
Water Absorption: 0.5%
-
Ultimate Elongation: 600% minimum
