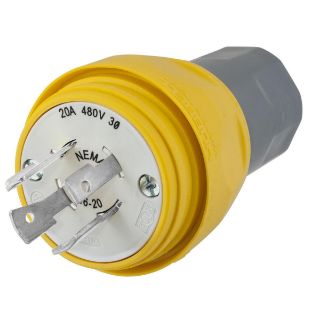

Hubbell Wiring Device-Kellems HBL26W76 HWD 3-Phase Dust-Tight Grounding Male Watertight Locking Plug 480 VAC 20 A NEMA L16-20P

Product Description

The Hubbell Wiring Device-Kellems HBL26W76 is a three-phase dust-tight grounding male watertight locking plug rated for 480 VAC and 20 A. This plug features a sturdy design with a smooth body to minimize collection points, making it ideal for tough industrial and commercial environments.

• Watertight with NEMA L16-20P rating
• Constructed with thermoplastic elastomer for durability
• Designed for 3 poles and 4 wires

Product Highlights

The HBL26W76 offers superior strain relief and outstanding performance in harsh conditions. It is suited for various applications requiring reliable electrical connections.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Horsepower: 5 hp
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 60 degrees C
• Cord Diameter: 3/8 to 7/8 inches
• Material: Thermoplastic Elastomer
