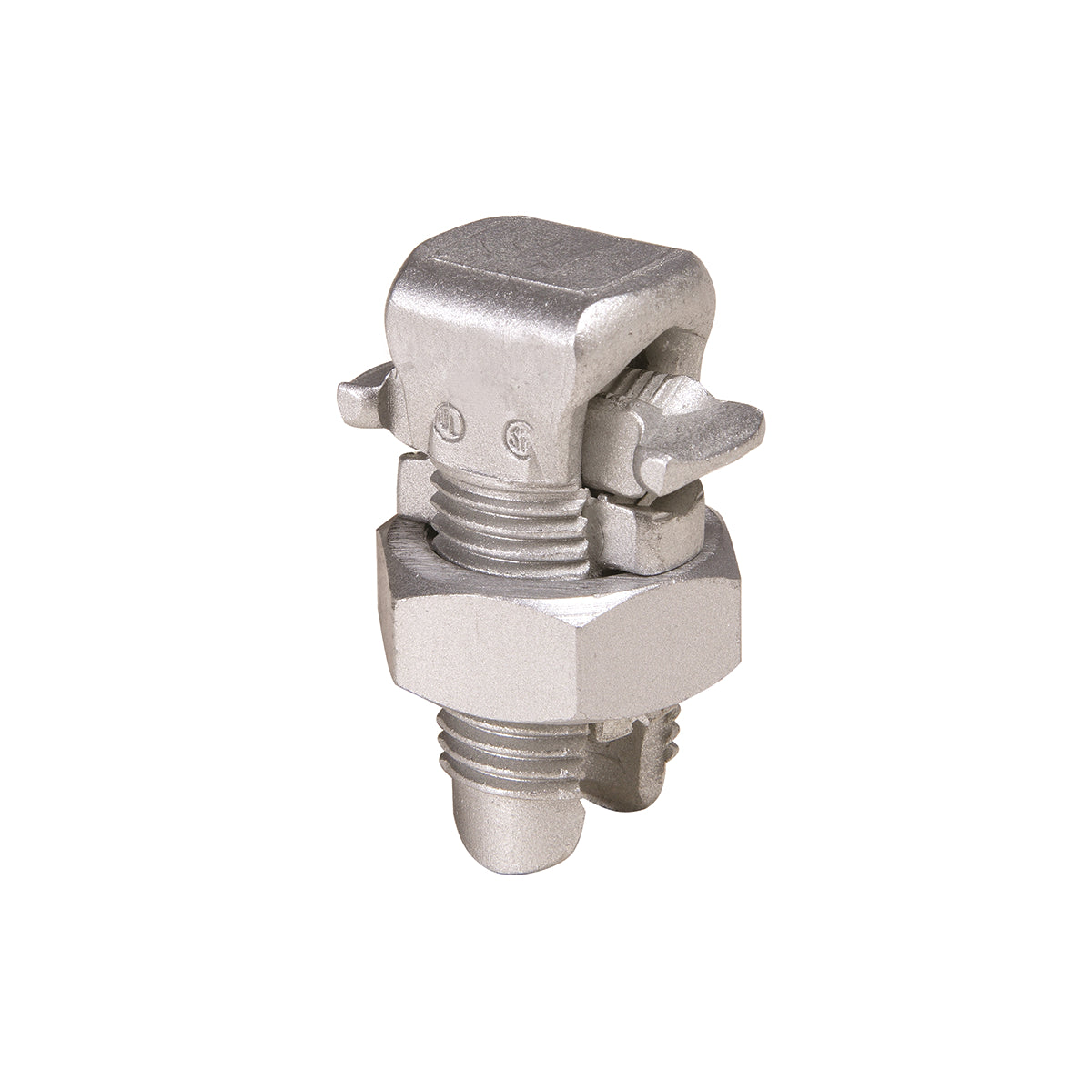

Hubbell KSA4/0 BURNDY Split Bolt 4/0AWG

Product Description

The Hubbell KSA4/0 is a BURNDY split bolt connector designed for secure electrical connections. It accommodates a conductor size ranging from six to four aught American Wire Gauge (AWG) and is suitable for aluminum and copper conductors. The dimensions include a length of two point five four inches and a width of one point one three inches. This connector can withstand a torque of five hundred inch-pounds and utilizes aluminum as its primary material.

• Conductor type compatible with aluminum and copper.
• High strength aluminum construction.
• Does not require scratch brushing or oxide inhibitors.

Product Highlights

This connector ensures a low contact resistance and secures a reliable bond between conductors. It provides a gastight seal that inhibits the formation of oxides, which contributes to better performance.

Product Information

Standard Information

• Application: For all combinations of aluminum to aluminum, aluminum to copper, and copper to copper.
• Manufacturer: Hubbell

Technical Specifications

• Conductor Size: 6 to 4/0 AWG, 2 to 4/0 AWG
• Finish: TiN Coated
• Length: 2.54 in
• Width: 1.13 in
• Torque Rating: 500 in-lb
• Material: Aluminum
• Series: KSA
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL 486A-486B, RoHS Compliant
