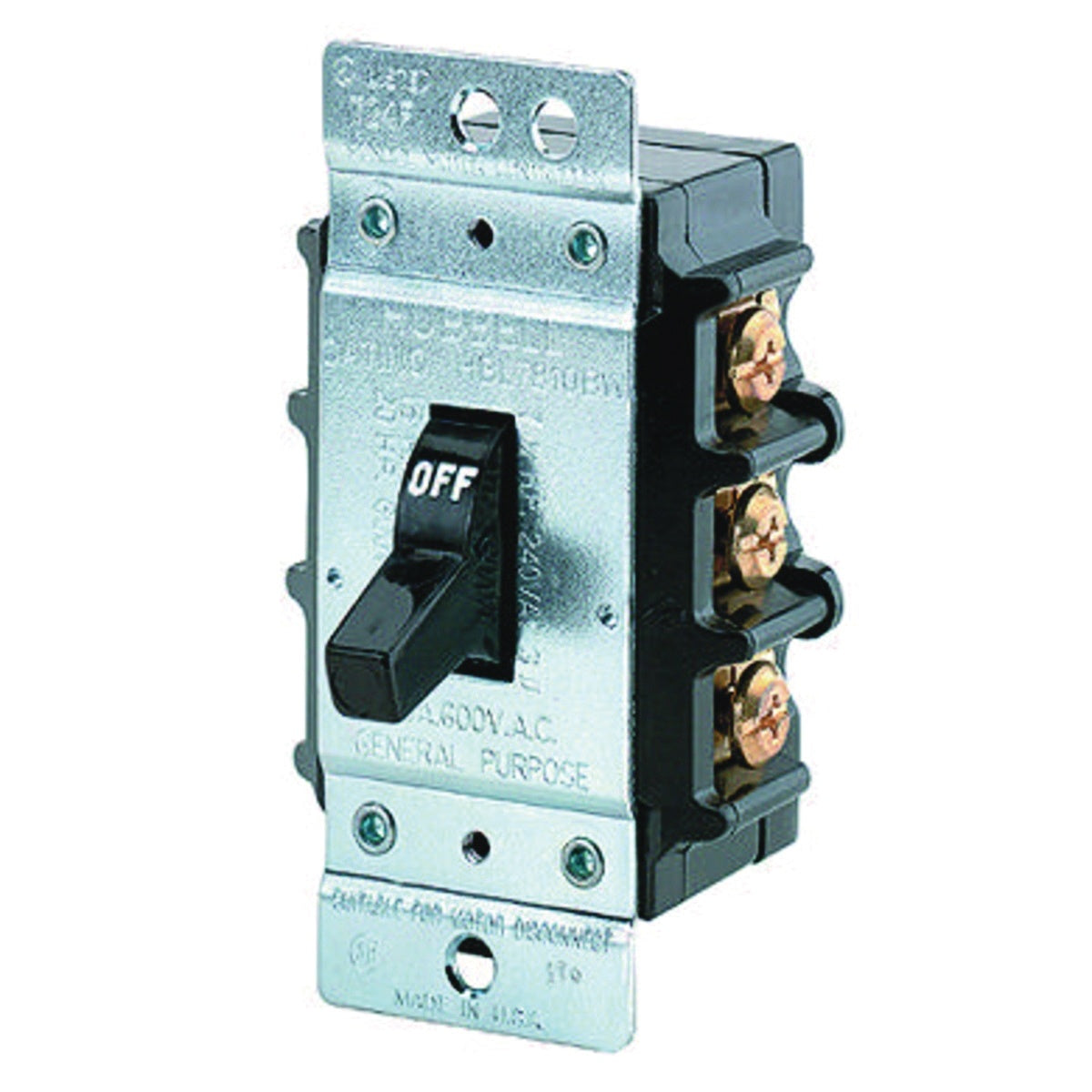

HUBBELL HBL7810 Manual Motor Controller Disconnect Switch 30A 600V 3-Pole

Product Description

The HUBBELL HBL7810 is a manual motor controller disconnect switch designed for switching applications. This three-pole switch supports voltage ratings up to six hundred volts and amperage up to thirty amps. Its thermoset body ensures high resistance to electrical arc tracking which makes it suitable for various industrial settings.

• Three-pole, three-position switch for diverse applications.
• Thermoset material resists electrical arc tracking.
• Silver alloy contacts enhance electrical conductivity.

Product Highlights

This switch provides quick-make, slow-break operation, essential for controlled disconnection of motors. Designed for environments requiring durable and reliable product use, it features back and side wiring options.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL7810

Technical Specifications

• Amperage Rating: 30 Amp
• Voltage Rating: 600 Volt AC
• Number of Poles: 3
• Contact Configuration: 3PST
• Connection Type: Screw
• Phase: 3
• Power Rating: 3 hp at 120 Volt AC, 7.5 hp at 240 Volt AC, 15 hp at 480 Volt AC, 20 hp at 600 Volt AC
• Conductor Size: 10 AWG
• Material: Thermoset
• Contact Material: Silver Alloy
• Operating Temperature Range: -40 to 75 deg C
• Standards: UL 508, E70402 Listed, CSA C22.2 No.14, LR46186 Certified
• Sub Brand: Circuit-Lock®
• Width: 1.69 inches
• Height: 3.78 inches
• Depth: 2.43 inches
• Environmental Conditions: HB/V0 Flammability Rated Per UL94
