Product Description

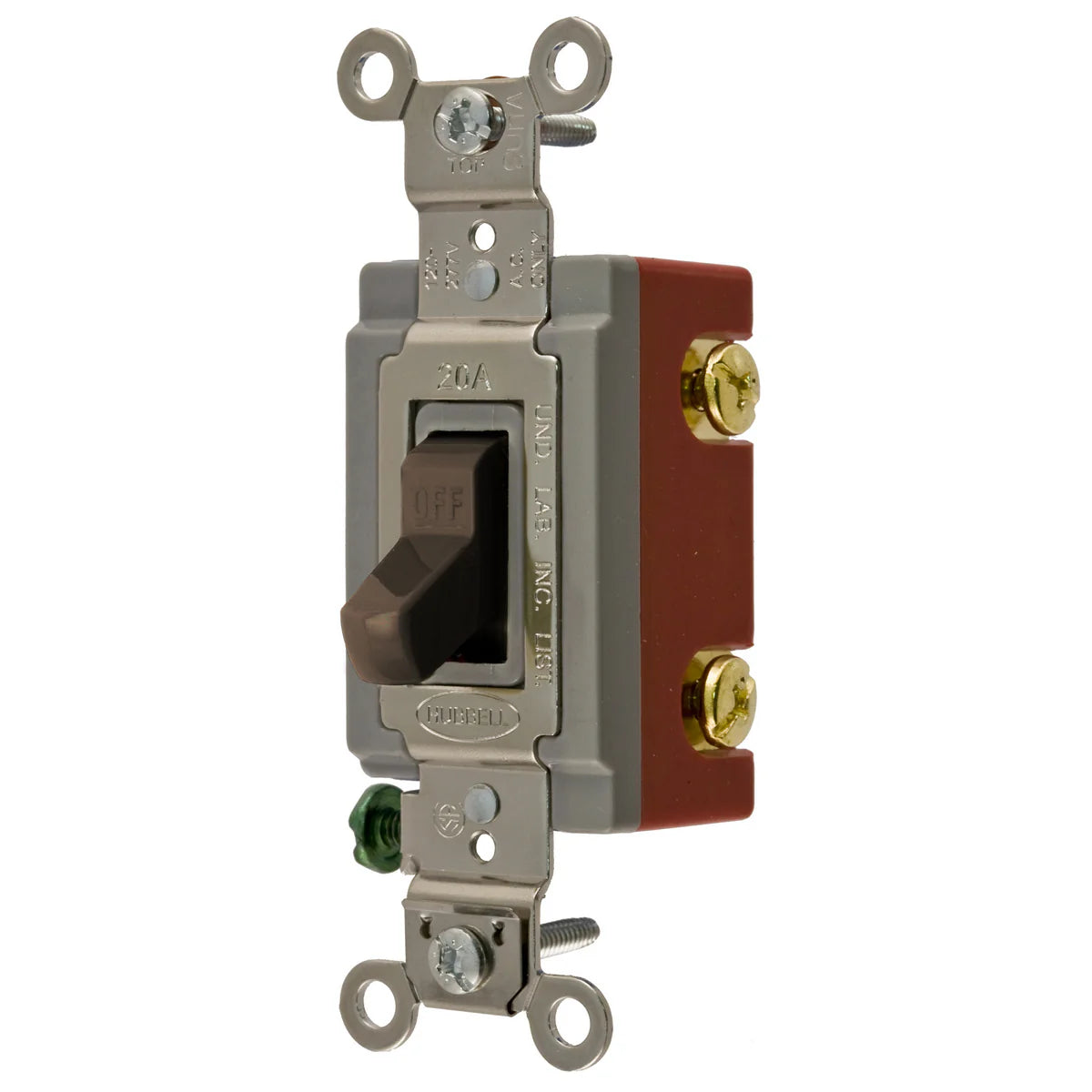

The Hubbell HBL1221 is a toggle switch designed for general purpose and industrial applications. This switch operates at 120 to 277 VAC with a maximum power rating of 5540 watts and a current rating of 20 amps.
- Two-position contact configuration
- Operating cycles rated for fifty thousand
- Constructed with a nylon toggle and thermoset body
Product Highlights
The HBL1221 is suitable for threaded mounting and features back and side wire terminals. It can withstand environmental conditions ranging from negative forty to seventy-five degrees Celsius.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Product Link: Buy Here
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 20 A
-
Application: Industrial and General Purpose Applications
-
Color: Brown
-
Contact Configuration: 2-Position
-
Dimensions: 4.06 x 1.31 x 1.87 inches
-
Environmental Conditions: -40 to 75 degrees Celsius
-
Manufacturer Part Number: HBL1221
-
Material: Nylon Toggle/Thermoset Body
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 50000 cycles
-
Power Rating: 5540 W
-
Series: HBL®
-
Standards/Approvals: UL 20, CSA Certified, NEMA WD1, RoHS Compliant, UL94 V-2 Flammability Rating
-
Terminal Type: Back/Side Wire
-
Type: 2-Position Extra Heavy Duty General Purpose Industrial Grade Standard
-
Voltage Rating: 120 to 277 VAC
