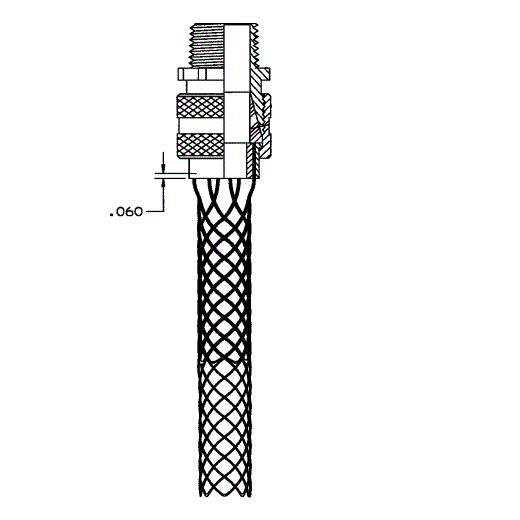

HUBBELL 7401025 Deluxe Cord Grip Straight Male Stainless Steel Mesh 1 Inch Thread

Product Description

The HUBBELL 7401025 is a deluxe cord grip that helps reduce pull tension on terminals, preventing cord pull-out. It has a straight male thread and is made from stainless steel mesh to resist corrosion. The grip ensures a liquidtight seal and regulates the cable arc-of-bend. This product is suitable for hazardous locations classified as Class I Div. 2, Class II Div. 1 and 2, and Class III Div. 1 and 2 N.E.C. Common uses include wiring enclosures, pendant stations, hand tools, and processing equipment.

• Corrosion-resistant stainless steel mesh.
• Multiweave grip for cable arc-of-bend control.
• Endless weave design allows for quick cable or flexible conduit installation.

Product Highlights

The HUBBELL 7401025 offers reliable strain relief and support for various industrial applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: 7401025

Technical Specifications

• Connector Type: Straight Male Thread
• Thread Size: 1 Inch
• Cable Diameter Range: 0.875 inches to 1.000 inches (2.22 cm - 2.54 cm)
• Body Material: Aluminum
• Mesh Material: Stainless Steel
• Nut Material: Aluminum
• Bushing Material: Neoprene
• Form Size: F4
• Operating Temperature: -30 to 225 degrees F
• Application: Liquidtight, Strain Relief, Crane/Hoist Pendant Drop Station, Hand Tools, Pump Processing Equipment
• Approval: UL, CSA
• Flammability: UL 94HB (Strand grip), UL 94V-2 (Fitting)
• Hazardous Locations: Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C.
• Wet Locations: Suitable for use in wet locations when paired with a listed sealing ring between box and fitting
• Knockout Hole Size: 1.359 to 1.406 Inches
