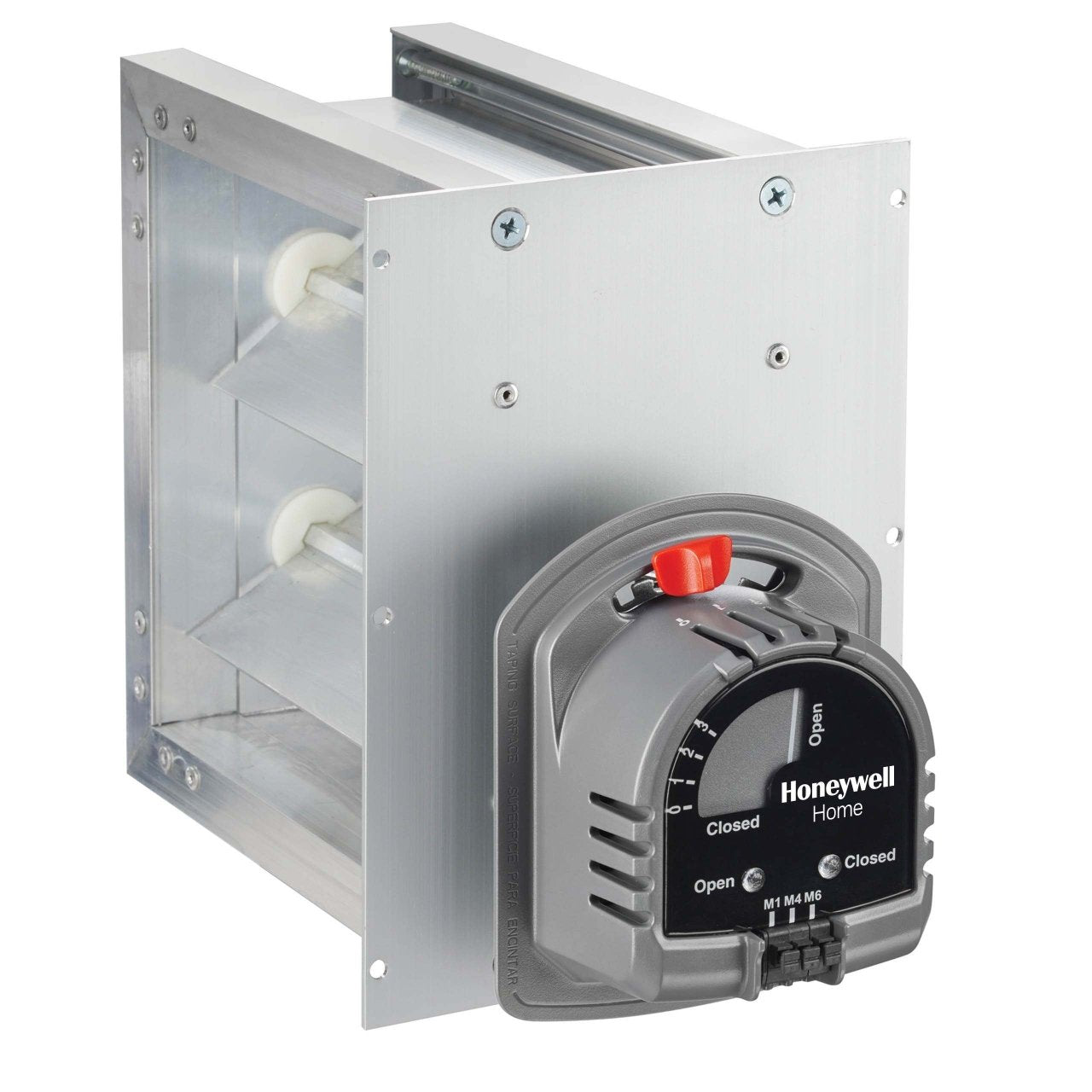

HONEYWELL ZD10X8TZ/U Zone Damper

Product Description

The HONEYWELL ZD10X8TZ/U is a rectangular zone damper designed for HVAC systems. This unit operates with a twenty-four volt motor for effective airflow control and is typically employed with electronic zoning systems. The damper employs a power-close, spring-open mechanism and is well-suited for applications needing a normally-open setup. Constructed with an extruded aluminum frame and blades, this zone damper is built for durability.

• Features a parallel blade design to ensure low leakage.
• Capable of operating at a maximum static pressure of one inch water column.
• Equipped with a twenty-four volt power close/spring open motor.

Product Highlights

This damper is effective for zoning applications where precise airflow regulation is necessary.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD10X8TZ/U

Technical Specifications

• Zone Control Product Type: Parallel Blade Dampers
• Damper Shape: Rectangular
• Damper Blade Action: Parallel
• Damper Motor Type: Power Close/Spring Open
• Damper Size: Ten inches by eight inches
• Frame Material: Aluminum
• Weight: 4.9 lbs
• Maximum Ambient Temperature: 140 F
• Minimum Ambient Temperature: 40 F
• Voltage: 24 VAC
• Leakage: Less than 1% at 0.5 in WC
• Rotation Angle: 90 degrees
• Power Open Timing: Thirty seconds
• Spring Return Timing: Ten seconds
• Maximum Static Pressure: One inch water column
