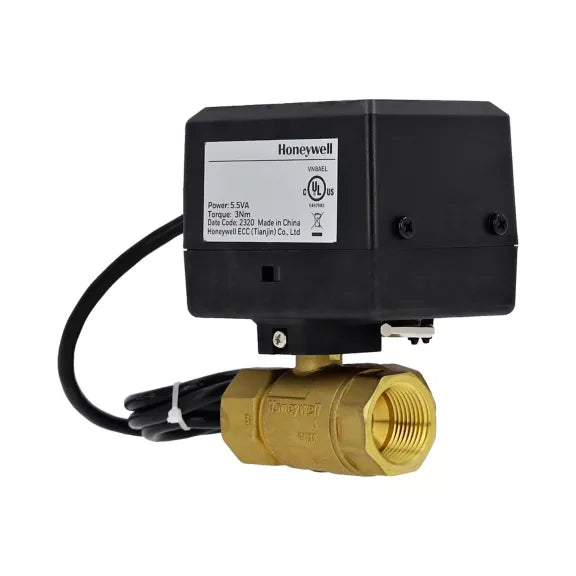

Honeywell VBN2FPSX0000 VBN2 and VBN3 Series Ball Valve

Product Description

The Honeywell VBN2FPSX0000 is a versatile ball valve from the VBN2 and VBN3 series. It features low-torque operation and is designed for two-way applications. The valve is suitable for handling hot or chilled water, and it can accommodate fluids with up to fifty percent glycol.

• Brass body construction ensures durability
• ANSI Class IV leakage rating
• Compatible with various Honeywell actuators

Product Highlights

This valve offers reliable performance with a range of Cv ratings to closely match standard globe valves. Its design accommodates various NPT sizes, making it a suitable option for different systems.

Product Information

Standard Information

• Valve Type: Two-way ball valve
• Actuator Compatibility: Honeywell or Kele 44 in-lb actuators

Technical Specifications

• Size: 1/2 inches to 3 inches FNPT
• Cv Range: 0.38 to 266
• Body Pattern: Two-way and three-way
• Flow Characteristic: Equal percentage for two-way with parabolic insert
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Max Closeoff Pressure: Two-way 1/2 inches and 3/4 inches: 130 psid; 1 inch to 3 inches: 100 psid
• Materials of Construction: Forged brass body, nickel-plated brass components
• Media Compatibility: Hot or chilled water up to 50% glycol
• Media Temperature Range: -22°F to 250°F
• Pressure Rating: 360 psig at 250°F
• Warranty: 5 years
