Product Description

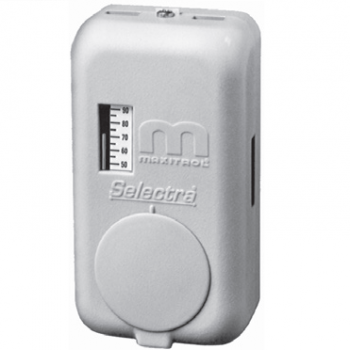

Honeywell TS244A Wall Mount Temperature Sensor (40° to 80°F)
Selectra® Series 44 systems are designed primarily for space heating, as components of direct fired equipment. A wall mounted Selectrastat® senses space temperature and has an integral selector with either a 55° to 90° F or 40° to 80° F range. A discharge air temperature sensor (and mixing tube) is a means of limiting the minimum and maximum discharge air temperature.
The systems utilize Modulator or Modulator-Regulator valves to control gas pressure. Amplifiers are available with adjustable low-fire start duration.
Specifications
Pressure Adjustment Ranges: (Maximum Fire)
Standard (MR212) ............... 2" to 5" w.c. / 5 to 12 mbar
Standard (MR212-2)............. 2" to 5" w.c. / 5 to 12 mbar reduced 0" to 3" w.c. / 0 to 7.5 mbar
Vent: Model M411, M511, M611-vertical vent outlet 1/8"
NPT—12A06 installed.
MR212—two vents located in upper housing, both equipped with vent limiting means.
Ambient Limits:
Operating ............................ -40° to 125° F / -40° to 52° C
Non-Operating ..................... -50° to 185° F / -46° to 85° C
Power Requirements: 24 Volts, NEC Class ll transformer 20 VA
Gases: All fuel gases
Pressure Limits: Maximum M411, M511, M611 Outlet Pressure: 7.0" w.c. /17 mbar
MR212 Outlet Pressure Springs: 1" to 3.5" w.c. / 2.5 to 9 mbar, 2" to 5" w.c. / 5 to 12 mbar, and 3" to 8" w.c. / 7 to 20 mbar
Static Pressure Rating (M411, M511, M611 ) ... 5.0 psi /345 mbar
Maximum Operating Inlet Pressure (MR212) .... 5.0 psi /345 mbar
Maximum Emergency Exposure *(MR212)...... 12.5 psi /862 mbar
