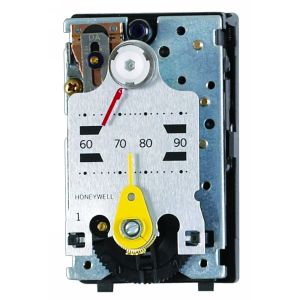

Honeywell TP973B2066/U Pneumatic Thermostat

Product Description

The Honeywell Pneumatic Thermostat, model TP973B2066/U, is designed for controlling pneumatic systems in HVAC applications. This device features direct acting capabilities and has a set point range from fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit. It operates effectively in both one or two pipe systems.

• Durable TP970 series design for reliable performance.
• Fitted with molded air connections, eliminating the need for separate fittings.
• Universal locking cover available in various window options.

Product Highlights

The Honeywell TP973B2066/U is ideal for efficient temperature control and comes with built-in restrictions suitable for two-pipe applications. It is compact and wall-mounted for easy installation.

Product Information

Standard Information

• Product Name: Pneumatic Thermostat
• Brand: Honeywell

Technical Specifications

• Application: Wall Thermostat, Single Temperature
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: 25 psi (170 kPa)
• Temperature Range: 59 F to 90 F
• Mounting: Wall mount
• Approvals: Underwriters Laboratories, CSA
• Sensor Element: Bimetal
