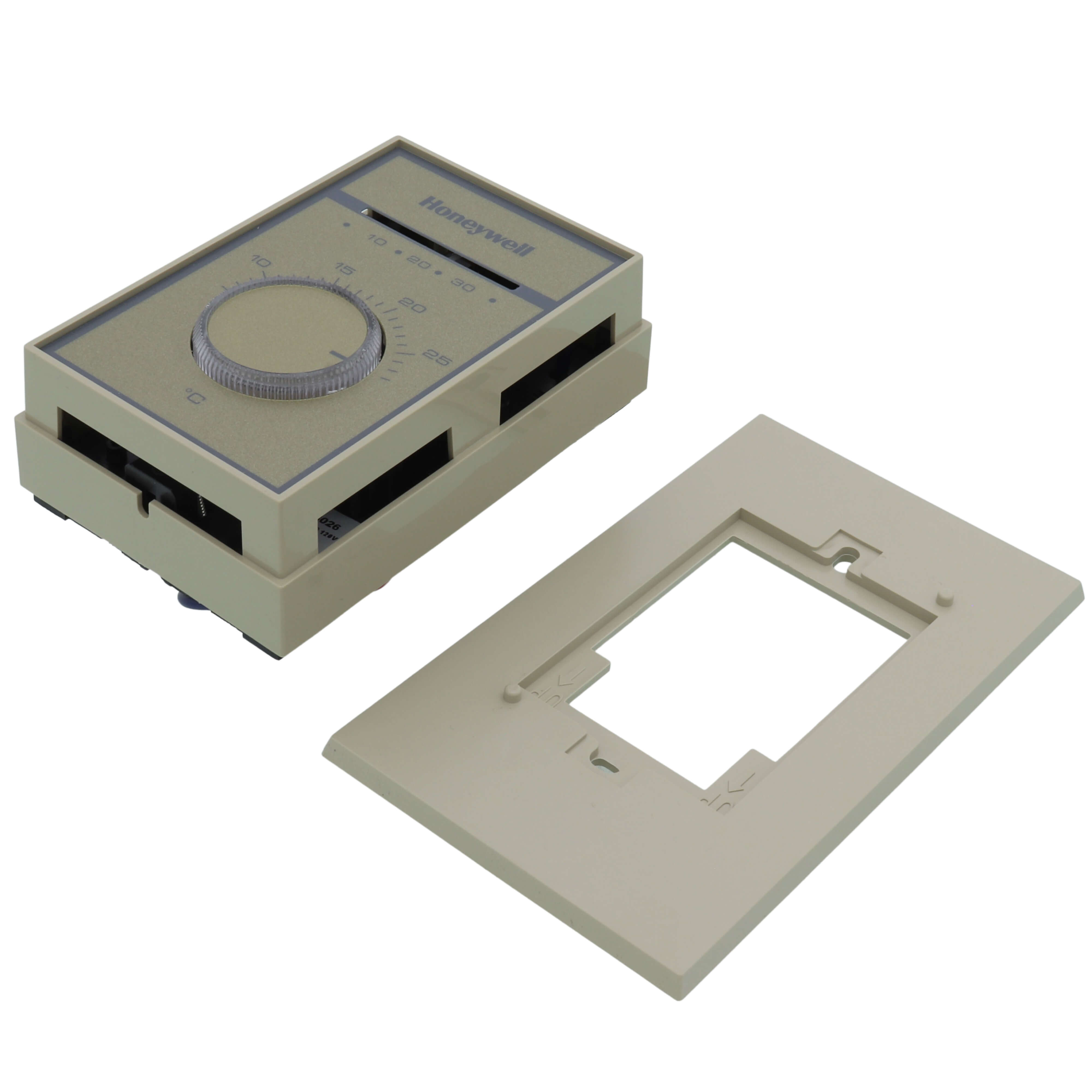

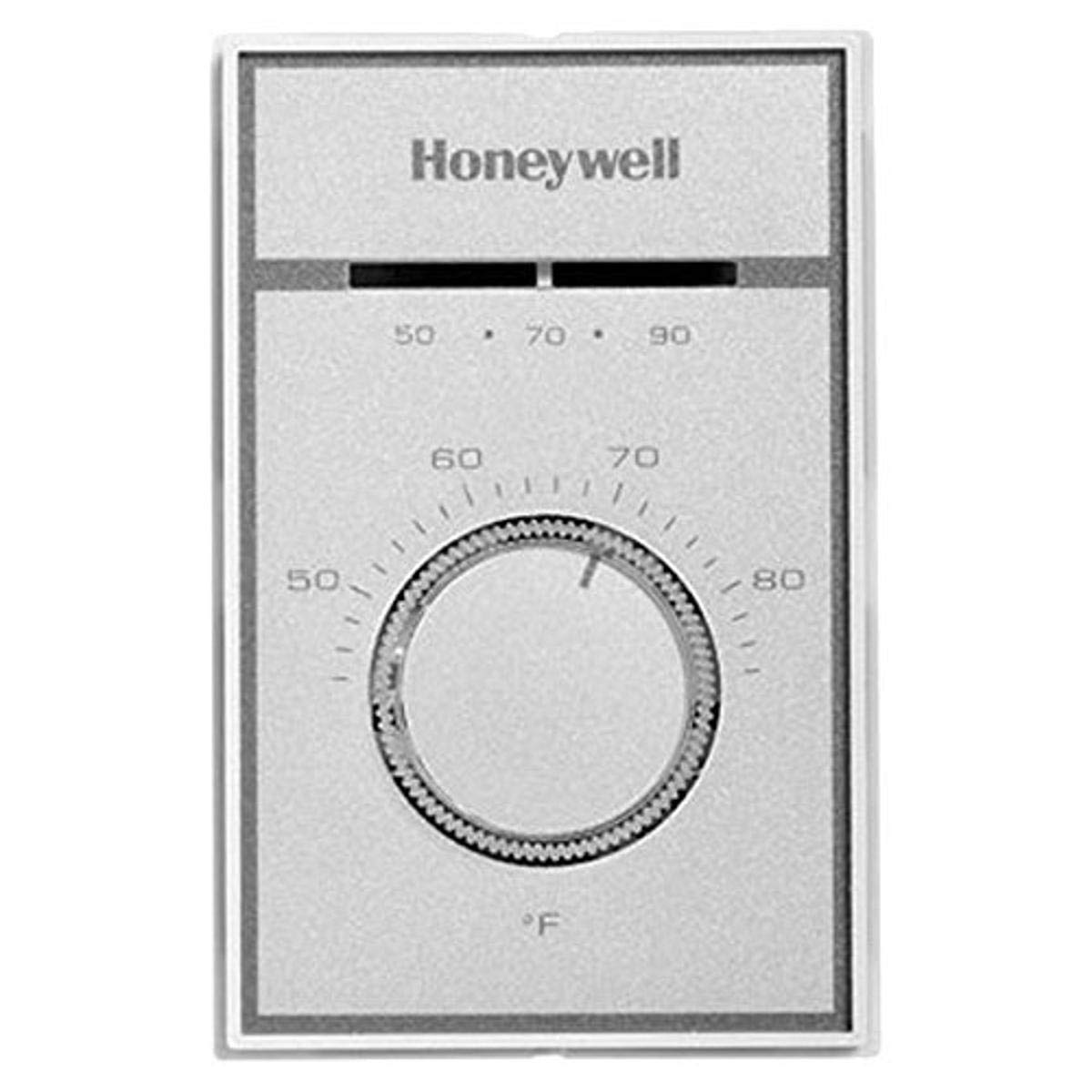

Honeywell T651A3026 Medium Duty Line Voltage Thermostat Heating Range 7 to 28 Degree C

Product Description

The Honeywell T651A3026 Medium Duty Line Voltage Thermostat is designed for reliable control of line voltage valves, motors, contractors, electric heat elements, duct furnaces, and fan coil units in heating/cooling systems. It features an adjustable temperature range from 7 to 28 degrees Celsius, suitable for various industrial and residential environments.

• Optimal for both heating and cooling applications
• Easy installation on standard vertical or horizontal outlet boxes
• Durable construction ensures longevity in harsh environments

Product Highlights

This thermostat's SPDT switch function breaks heating and makes cooling on temperature rise, providing efficient operational control. With a durable champagne gold face-plate and beige cover, it combines functionality with aesthetic appeal.

Product Information

Standard Information

• Mount: Can be mounted on both vertical and horizontal outlet boxes
• Switch Type: SPDT - breaks heating, makes cooling on rise

Technical Specifications

• Temperature Range: 7°C to 28°C
• Voltage: 120 Vac to 277 Vac
• Current Operations: 9.8 FLA at 120 Vac to 4.2 FLA at 277 Vac
• Dimensions: 4.5 inches high x 2.94 inches wide x 1.5 inches deep
• Frequency: 50 Hz, 60 Hz
• Electrical Ratings: Up to 22 A at 120 - 240 Vac resistive and 19 A at 277 Vac resistive
