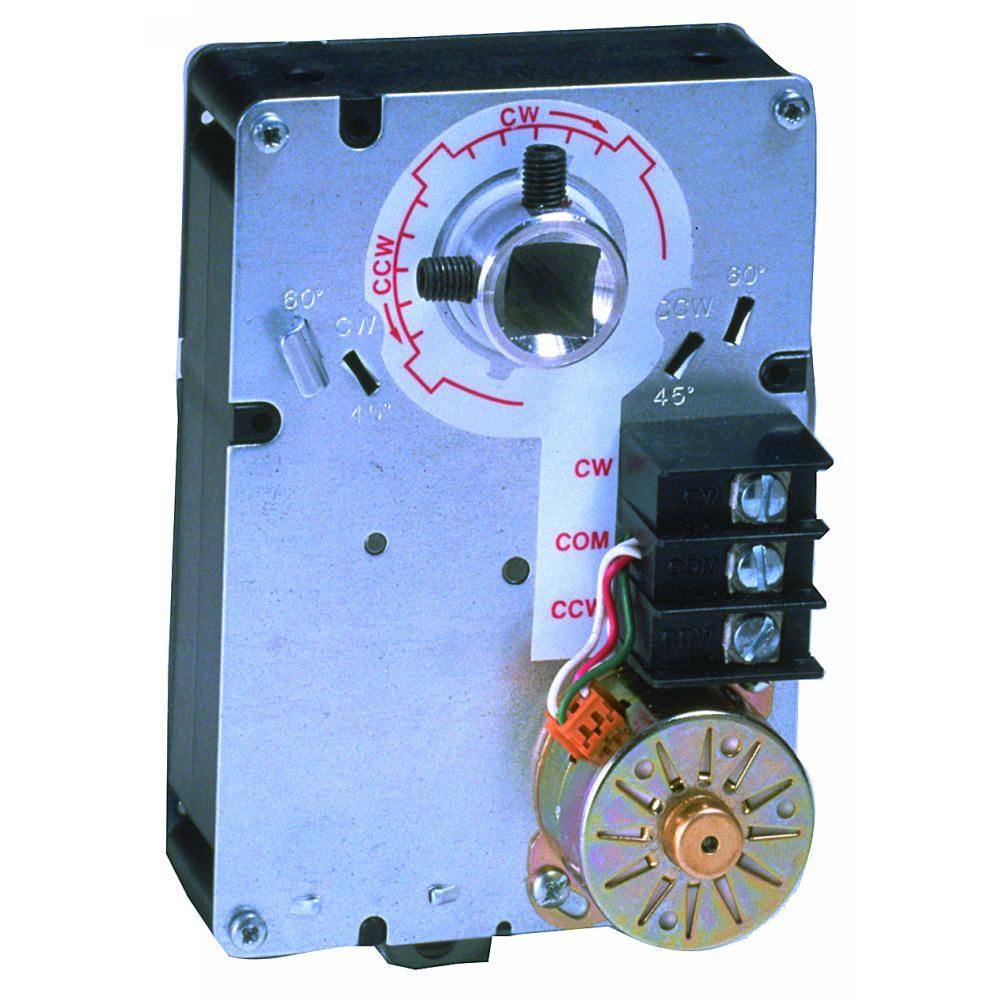

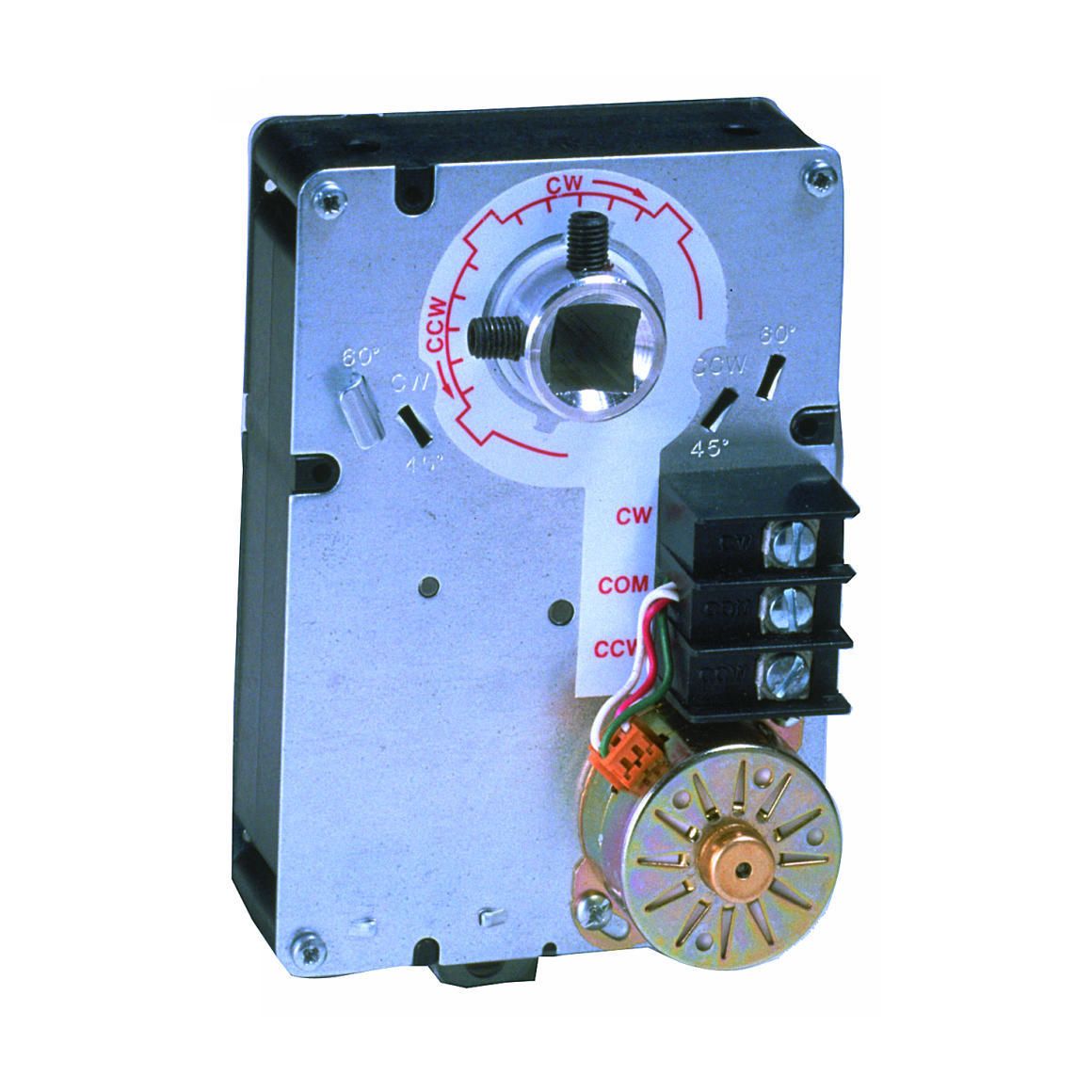

Honeywell ML6161A2025/U Direct Coupled Actuator 35 lb-in

Product Description

The Honeywell ML6161A2025/U is a direct coupled actuator designed for HVAC applications. It operates with a force of thirty-five pounds per inch and features a non-spring return design. This actuator uses a 24 VAC power supply and has an 18 VA rating for reliable performance in controlling dampers and valves.

• Minimum position adjustment from zero to thirty degrees on all models.
• Magnetic coupling that removes the need for mechanical stops.
• Field-addable auxiliary feedback potentiometer on select models.

Product Highlights

This actuator is particularly useful for commercial building controls, allowing for precise control of dampers in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Category: HVAC Control Components

Technical Specifications

• Power Consumption: 24 VAC
• Style: Dampers and Damper Actuators
• Operating Temperature: 20 F to 125 F (-18 C to 50 C)
• Auxiliary Switches: Selective NO or NC, Pilot Duty: 50 VA, 24 VAC Switch Differential: Three Angular Degree Maximum
• Housing: Round or Square Shaft
• Feedback Potentiometer: Field-Addable on Select Models
• Manual Declutch: On All Models
