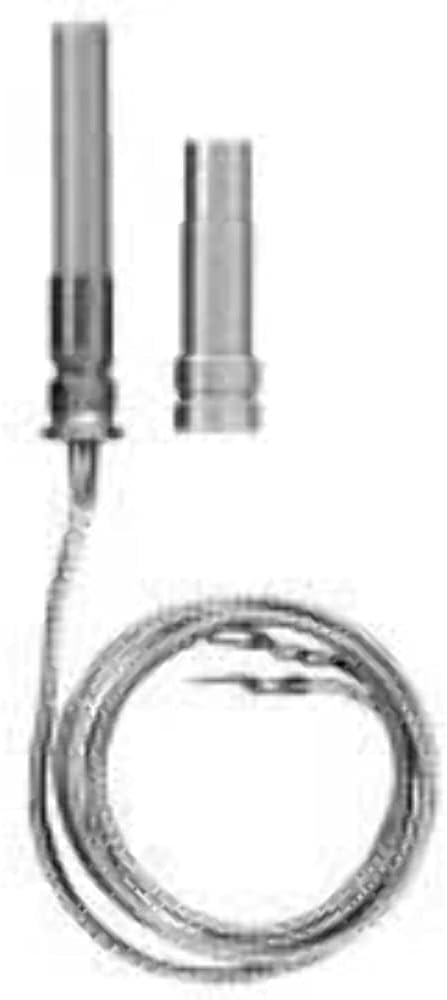

Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Thermopile Generator
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Drop Out Time 30 Second
Includes Attaching Nut
