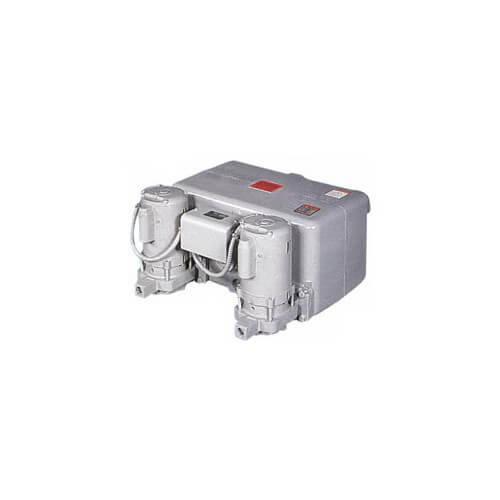

HOFFMAN 160032 WCD-12-20B-MA Watchman Condensate Unit with Mechanical Alternator

Product Description

The Hoffman Watchman Condensate Unit model WCD-12-20B-MA is designed for effective return of condensate to boiler systems. Featuring a mechanical alternator for reliable duplex pump operation, this unit ensures sustained performance in a range of settings, including industrial and residential environments.

• Capable of servicing up to 12,000 square feet EDR.
• Includes cast iron and steel options with durability enhancements.
• Simple installation and maintenance with vertically oriented pumps.

Product Highlights

This condensate unit is factory-tested to assure quality and includes a twenty-year warranty on its cast iron receiver for corrosion resistance. It supports a wide range of applications from dry cleaning to chemical processing.

Technical Specifications

• Material: Cast Iron, Steel
• Power: 115/208-230V
• Capacity: 14 gallons
• Max Temperature: 225 degrees Fahrenheit
• Dimensions: 22.75 inches x 17 inches x 23 inches
• Weight: 220 pounds
• Pump Type: Duplex with mechanical alternator
• Installation: Vertical pump with NPT connections
