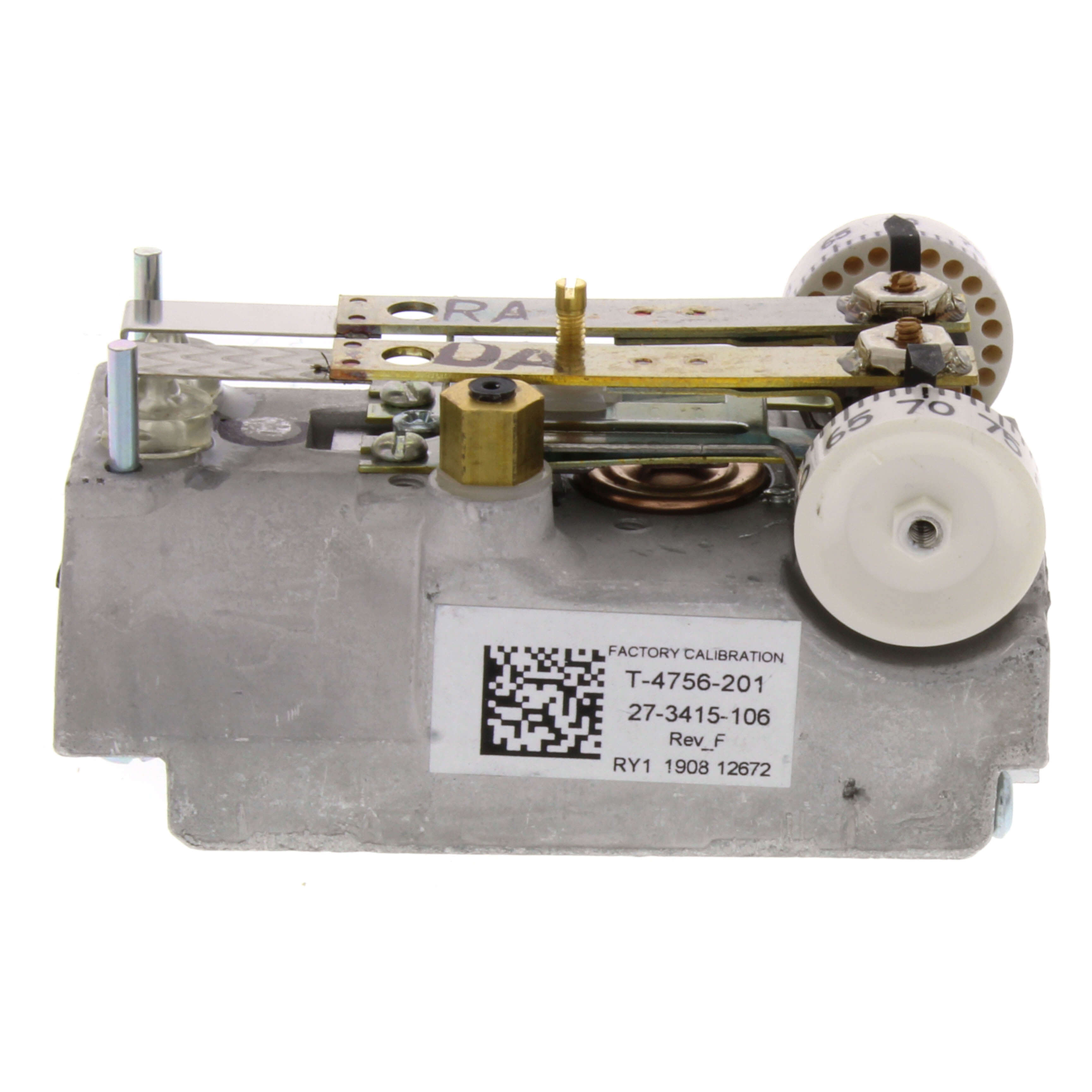

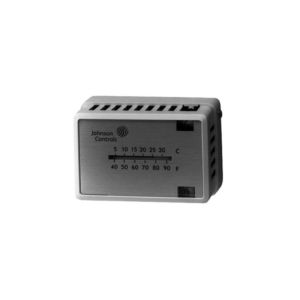

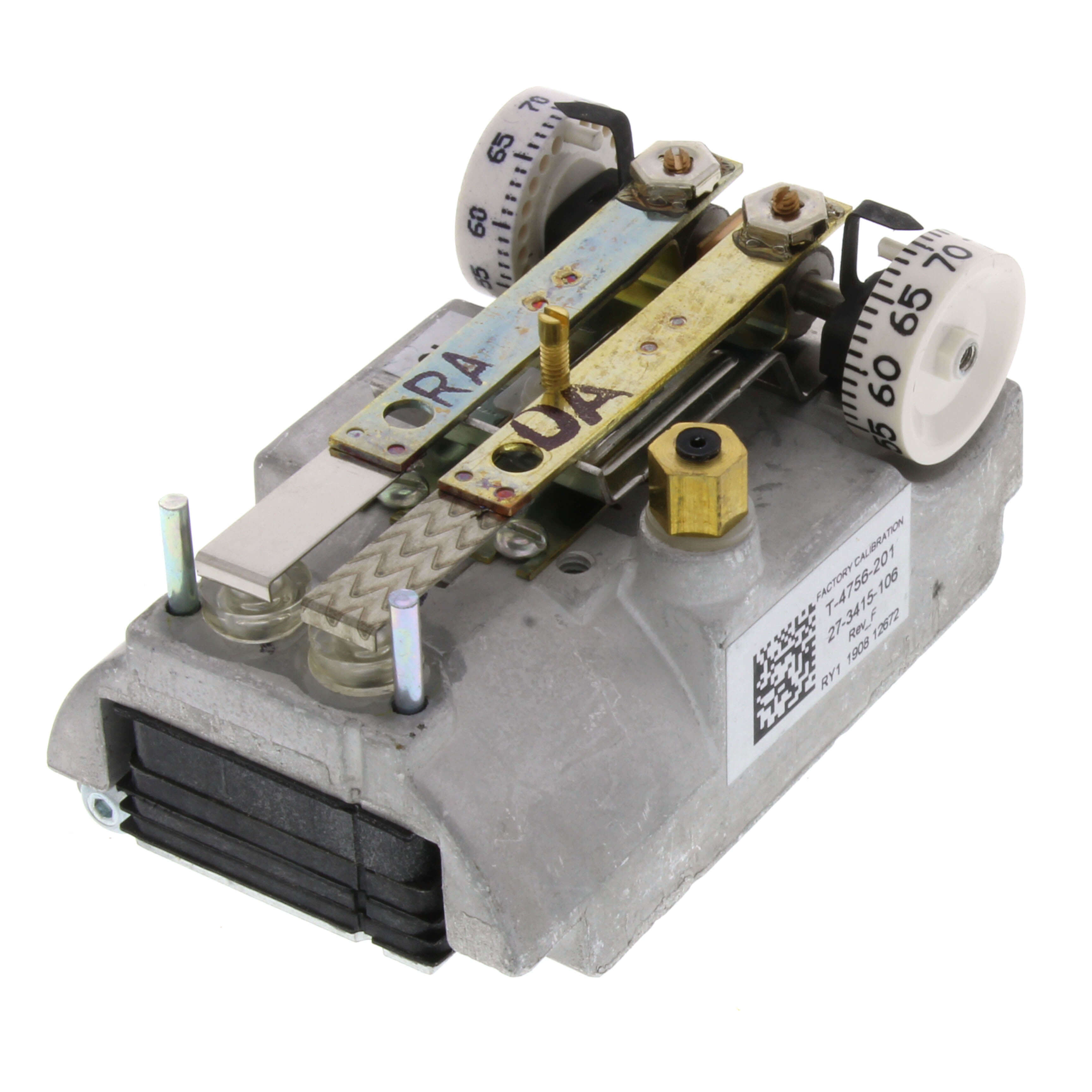

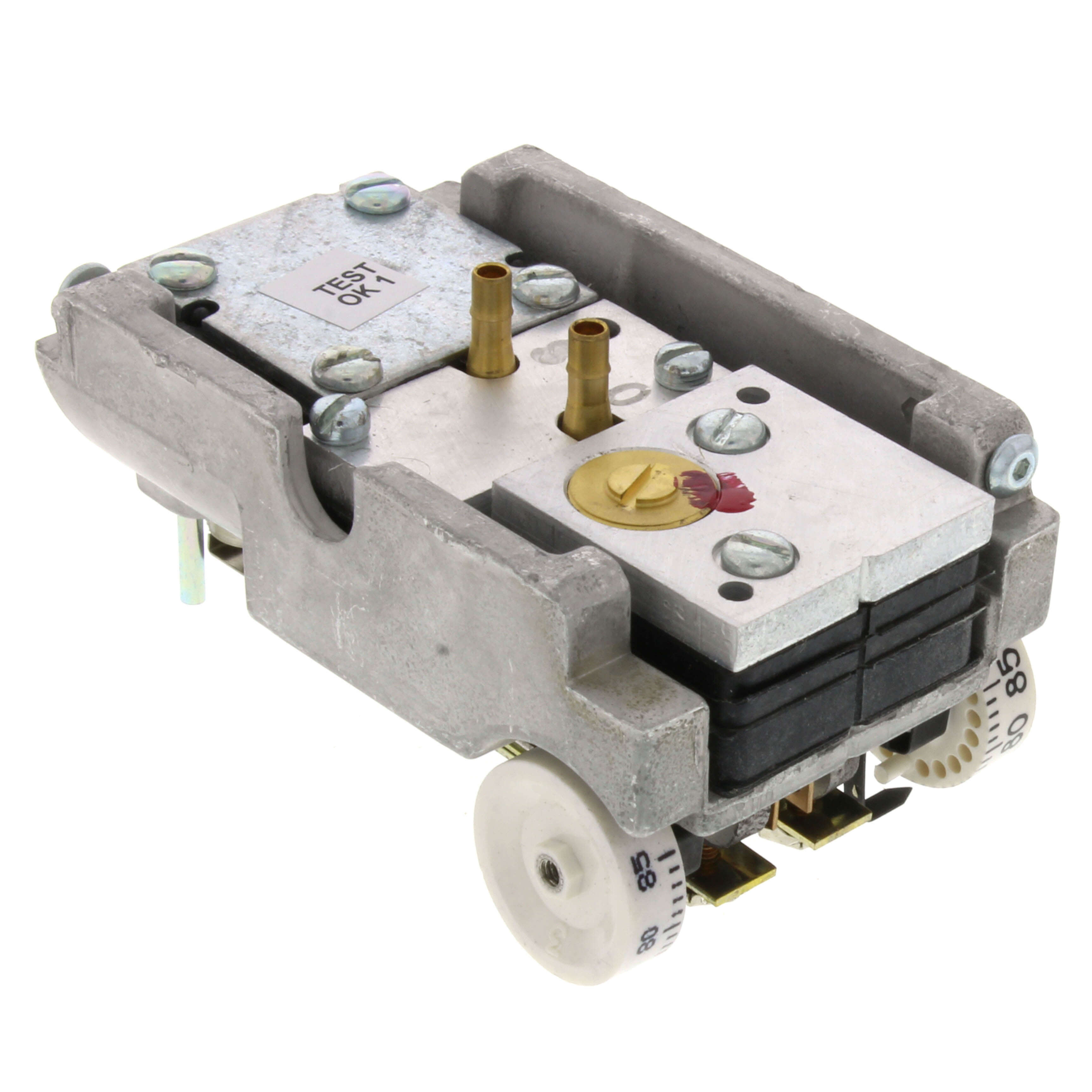

Johnson Controls T-4756-201 Pneumatic Room Thermostat 15 psi Direct 20 psi Reverse

Product Description

The Johnson Controls T-4756-201 is a pneumatic room thermostat designed for effective temperature control in various heating and cooling applications. This unit features dual direct and reverse acting capabilities with a pressure range of 15 psi for direct and 20 psi for reverse. The temperature dial range spans from fifty-five to eighty-five degrees Fahrenheit, accommodating a variety of environments. The thermostat is horizontal mounted and provides separate set point adjustments through its dual dial design. This makes it a reliable option for users seeking versatility in managing environmental conditions.

• Temperature Range: 55 F to 85 F
• Direct Acting at 15 psi, Reverse Acting at 20 psi
• Horizontal Mounting with Dual Dials

Product Highlights

Designed for high-volume output applications, the Johnson Controls T-4756-201 enhances HVAC system performance by ensuring accurate temperature management.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-4756-201

Technical Specifications

• Weight: 0.38 lbs
• Dimensions: 3.8 x 4.25 x 2.85 inches
• User Interface: Mechanical
• Programmability: Non-Programmable
• Mount Type: Horizontal
