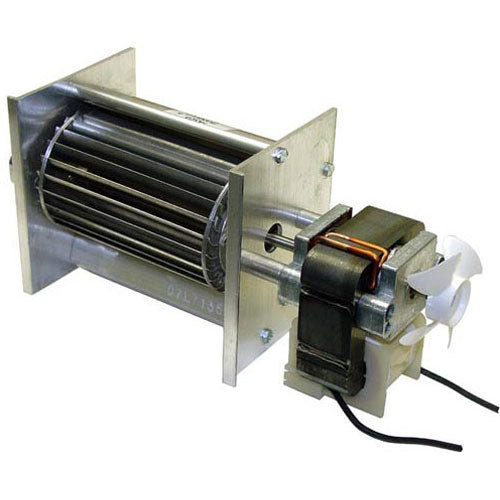

MOTOR 120V HP P 681132 for Hatco R02.12.003

Product Description

This item for Hatco R02.12.003 is a motor designed for efficient operation in commercial equipment. It operates at one hundred twenty volts with a horsepower rating suitable for various applications.

• Power: One hundred twenty volts, point six five amps
• Speed: Two thousand two hundred fifty RPM
• Includes: Cooling fan with dimensions four inches by two and three-eighths inches

Product Highlights

This motor is suitable for use in warmer series such as FS and WFST, designed to replace previous models effectively.

Product Information

Standard Information

• Weight: Three point eight pounds
• Dimensions: Length ten inches, Width six point three inches, Height six point three inches

Technical Specifications

• RPM: Two thousand two hundred fifty
• Wire Leads: Eighteen and one-half inches
• Fan Blades: Four blades, two hundred fifteen ID
• Use Case: Compatible with multiple warmer series
• Additional Notes: Lacks hardware conversion for older models
• Cooling Fan Dimensions: Five and one-quarter inches by four and one-quarter inches by three and three-eighths inches
• Blower Wheel: Four inches by two and three-eighths inches
• Air Chamber Gasket: Sixty by half, adhesive backed
