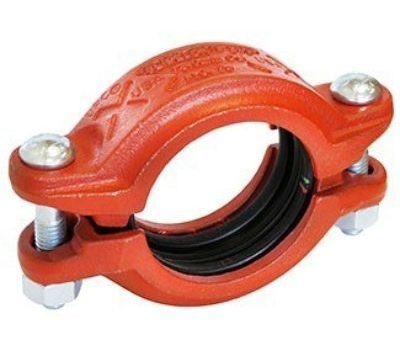

GRUVLOK 0390010064 SlideLOK Ready for Installation Coupling 4 in.

Product Description

The GRUVLOK 0390010064 SlideLOK coupling is designed for quick installation and a reliable connection. This coupling accommodates grooved end pipes and provides a rigid assembly with a maximum working pressure of 750 PSI. The patented gasket ensures four separate sealing surfaces for enhanced protection.

• Fits roll groove or cut groove steel pipe and grooved fittings.
• Reduces installation time with slide action design.
• Suitable for a range of temperatures from -40 to +250 degrees Fahrenheit.

Product Highlights

This coupling is ideal for projects requiring efficient assembly and robust connections. It allows compliance with ASME B31 pipe codes for hanging practices.

Product Information

Standard Information

• Manufacturer: ANVIL GRUVLOK
• Part Number: 816217

Technical Specifications

• Material: Ductile Iron
• Size: 4 inches
• Weight: 4.9 lbs
• Color: Orange
• Maximum Pressure Rating: 750 PSI
• Temperature Range: -40 to 250 degrees F
• Includes: Bolts, Heavy Hex Nuts, and EPDM Gasket
• Specifications Met: ASTM A536 Grade 65-45-12, UPC, ANSI/NSF 61 Annex G
