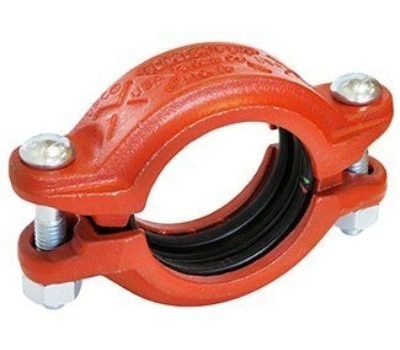

Gruvlok 0390010049 SlideLok 3 in. Ductile Iron Rigid Coupling

Product Description

The Gruvlok 0390010049 is a SlideLok coupling designed for use with grooved end pipes made from ductile iron. This coupling helps reduce installation time with its slide action feature. It is designed to provide a rigid connection and meets the demands of various applications. This product is suitable for roll groove or cut groove steel pipes, grooved light wall pipes, and Gruvlok grooved-end fittings. The SlideLok coupling has a maximum working pressure of seven hundred fifty PSI and operates effectively under temperature ranges from minus forty to two hundred fifty degrees Fahrenheit.

• Reduces installation time with slide action
• Maximum working pressure of 750 PSI
• Suitable for water service and many chemical applications

Product Highlights

Product Information

Standard Information

• Manufacturer: Anvil Gruvlok
• Part Number: 816216

Technical Specifications

• Model Number: 0390010049
• Material: Ductile Iron
• Weight: 3.6 lb.
• Color: Orange
• Maximum Pressure Rating: 750 PSI
• Minimum Temperature Rating: -40 deg F
• Maximum Temperature Rating: +250 deg F
• Specifications Met: ASTM A536 Grade 65-45-12, UPC, ANSI/NSF 61 Annex G
