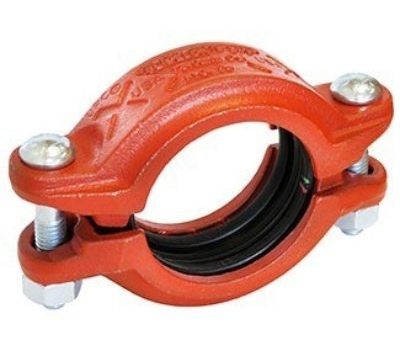

GruvLok 0390010023 SlideLok 2-1/2 in. Coupling

Product Description

The GruvLok 0390010023 SlideLok coupling is designed to provide a rigid connection for grooved end pipes. This coupling simplifies the installation process with its slide action feature, reducing time on the job. It incorporates a patented gasket with four sealing surfaces that enhances reliability.

• Easy slide action for quick assembly
• Designed for roll groove or cut groove steel pipe
• Maximum working pressure of 750 PSI

Product Highlights

The SlideLok coupling is engineered for compatibility with various grooved fittings and valves. It is suitable for a range of applications, including water service and chemical transportation.

Product Information

Standard Information

• Manufacturer: ANVIL GRUVLOK
• Part Number: 816215

Technical Specifications

• Material: Ductile Iron
• Size: 2-1/2 inches
• Weight: 3.1 lb.
• Maximum Pressure Rating: 750 PSI
• Minimum Temperature Rating: -40 degrees F
• Maximum Temperature Rating: +250 degrees F
• Specifications Met: ASTM A536 Grade 65-45-12
