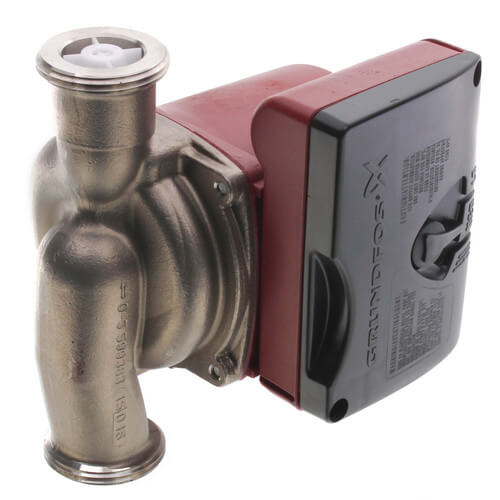

Grundfos GF59896781 UPS15-55SUC 115V 1/12HP S.S.

UPS 15-55 SUC * Product Number: 59896781 * EAN number: 5700837428125 * Speed Number: 3 * Max flow: 25.1 US gpm * Head max: 18 ft * Maximum operating pressure 145 psi * Approvals on nameplate: UL, CSA * Valve: pump with built-in isolating and * non-return valves * Pump housing: Stainless steel * DIN W.-Nr. 1.4301 * AISI 304 * Impeller: Composite, PES * Maximum ambient temperature: 104 F * Ambient max at 176F liquid 176 F * Maximum operating pressure 145 psi * Flange standard: USA Threaded * Type of connection: S.S. Union * Pipe connection: 1 1/4 NPSM * Pressure stage: 10 * Port-to-port length: 5.87 in * Liquid temperature range 35.6 .. 230 F * Number of poles: 2 * Power input in speed 1: 56 W * Power input in speed 2: 74 W * Max. power input: 87 W * Rated power - P2: 0,6/0,07/0,09 k
W * Main frequency: 60 Hz * Rated voltage: 1 x 115 V * Current in speed 1 0.31 A * Current in speed 2 0.66 A * Current in speed 3 0.69 A * Capacitor size - run 10 F/180 V * Insulation class (IEC 85): F * Motor protection: CONTACT * Thermal protec: internal * Pos term box: 9H * Gross weight: 5.4 lb
