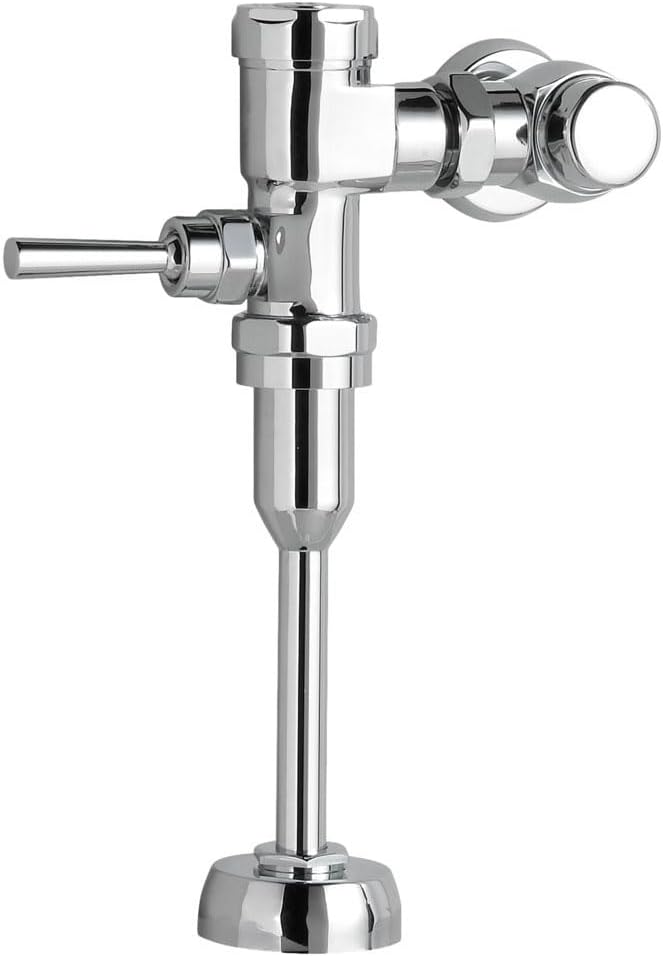

GROHE 6045101 American Standard Exposed Manual 3/4-Inch Top Spud 1.0 Gpf Urinal Flush Valve

Product Description

The GROHE 6045101.002 American Standard exposed manual flush valve is built for urinals with a three-quarter inch exposed top spud. It includes DynaClean self-cleaning wiper spring technology for enhanced durability. The ADA-compliant non-hold open handle ensures that the valve shuts off automatically after each use. Its piston operation mechanism allows for precise and reliable flushing.

• For urinals with three-quarter inch (19 mm) exposed top spud
• Self-cleaning wiper spring technology
• ADA-compliant handle for automatic shut-off after every flush

Product Highlights

This flush valve is efficient and designed for ease of use in commercial settings.

Product Information

Standard Information

• Brand: American Standard
• Material: Metal

Technical Specifications

• Exterior Finish: Chrome
• Inlet Connection Size: 0.75 inches
• Maximum Operating Pressure: 80 pounds per square inch
• Outlet Connection Size: 0.75 inches
• Water Consumption: 1 gallon per flush
• Installation Method: Urinal
• Item Package Quantity: 1
