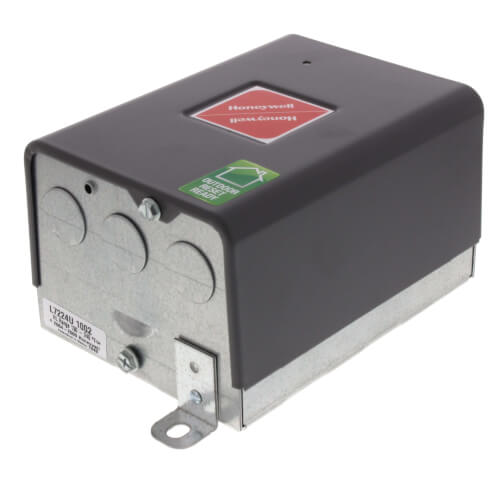

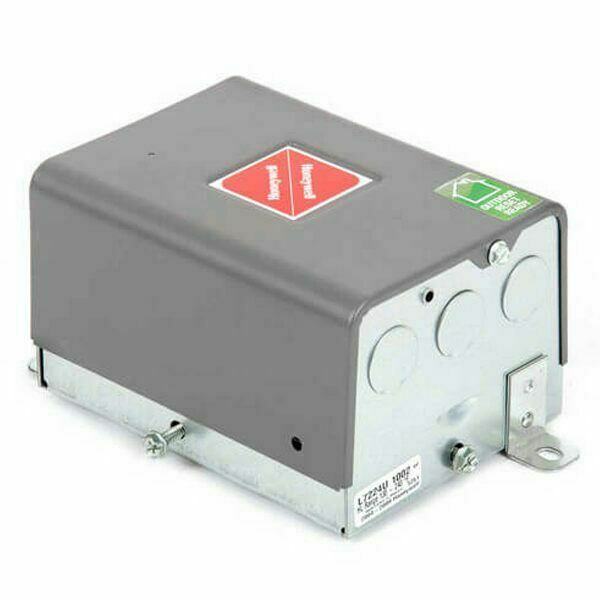

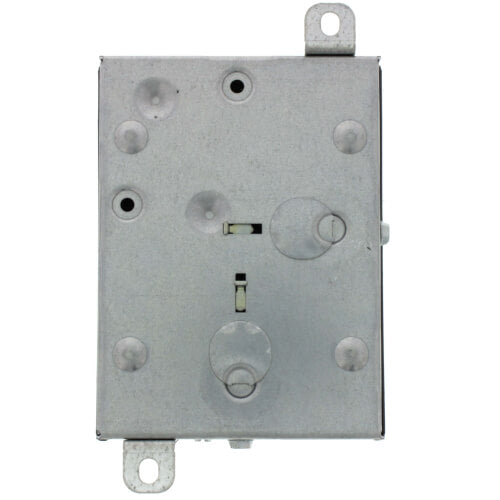

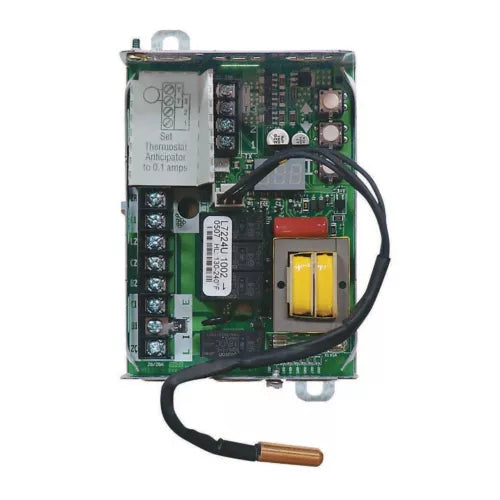

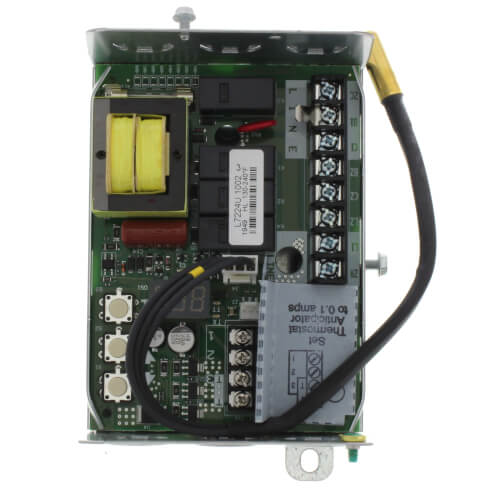

GOODMAN L7224U1002/U Oil Electronic Aquastat Controller

Product Description

The Goodman L7224U1002/U is an oil electronic aquastat controller suitable for heating and cooling systems. It effectively manages temperature in potable water applications. This unit features high limit protection along with low limit and circulator control functionality.

• EnviraCOM communications enabled
• Requires a twenty-five volt thermostat
• Compatible with W8735S1000 and W8735Y1000 outdoor reset options

Product Highlights

This aquastat controller provides efficient temperature regulation and safety features necessary for reliable operation in HVAC systems.

Product Information

Standard Information

• Brand: Goodman
• MPN: L7224U1002/U

Technical Specifications

• Application: Oil Aquastat Controller
• Voltage: 120 V
• Amperage: 7 A
• Temperature Range (°F): 110°F to 220°F
• Differential: Adjustable from 5°F to 25°F
• Min Ambient Temp (°F): -30°F
• Max Ambient Temp (°F): 150°F
• Height (In.): 7-1/8
• Width (In.): 4.25
• Depth (In.): 2-5/8
• Weight: 2 lb
• Frequency: 60 Hz
• Max Power Consumption: 2000 VA
• Electrical Rating: Circulator: 7.4 A @ 120 Vac, Burner: 7.4 A @ 120 Vac
