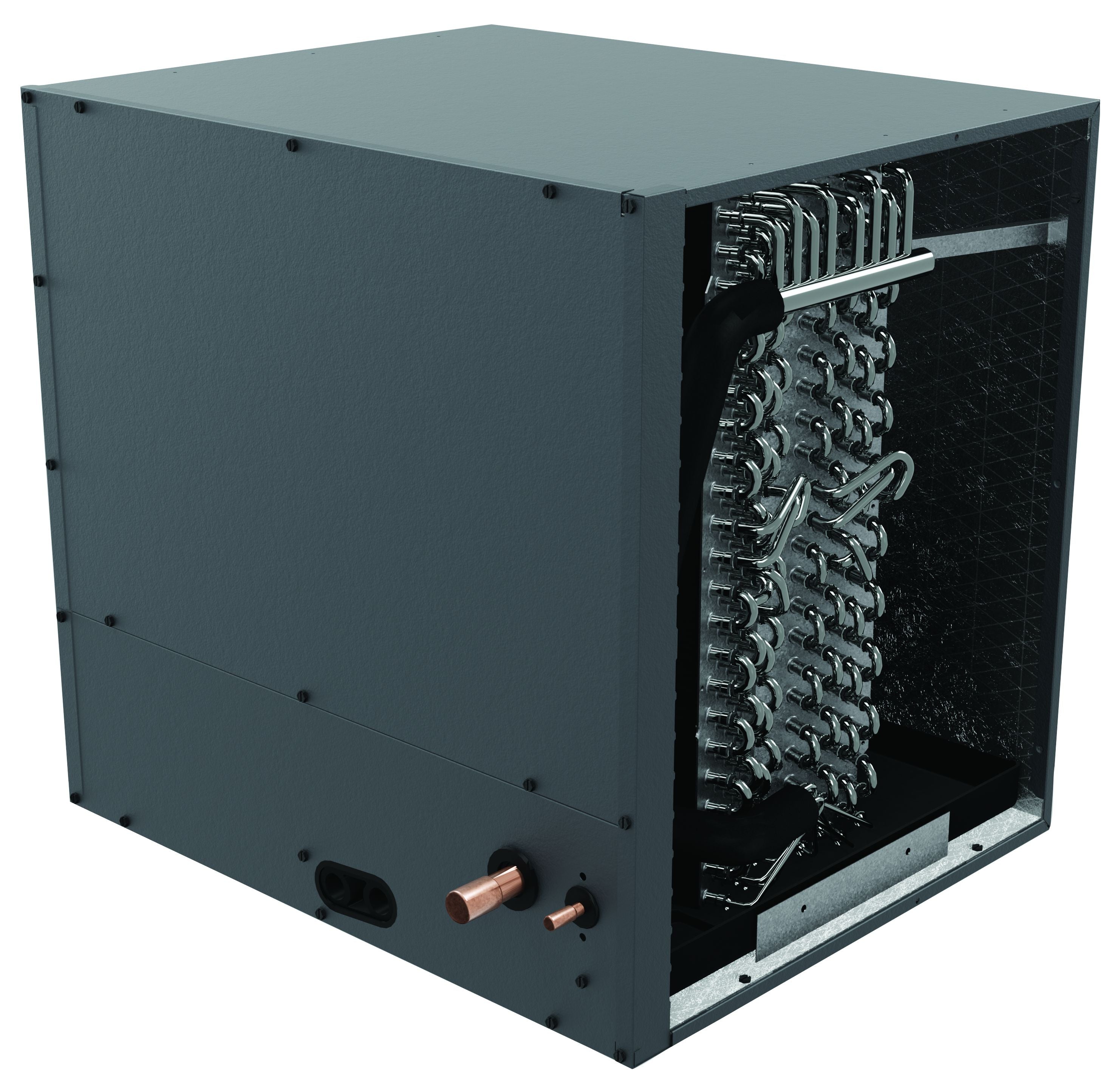

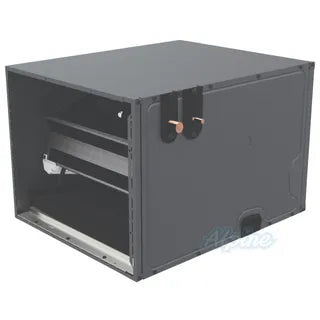

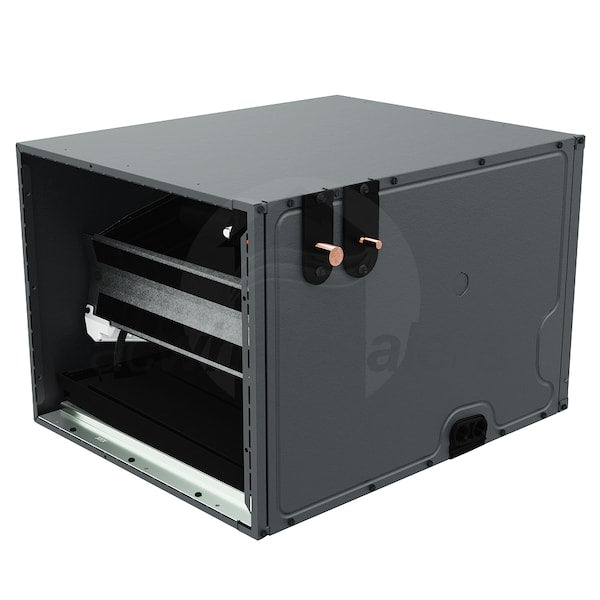

Goodman CHPTA3630B3 3.0 Ton Horizontal A Coil

Product Description

The Goodman CHPTA3630B3 is a cased A coil for horizontal airflow in split system air conditioners and heat pumps. This coil is built with all-aluminum fins and grooved tubes for optimal heat transfer.

• All-aluminum construction
• Factory-installed thermostatic expansion valve (TXV)
• Compatible with R-32 refrigerant

Product Highlights

This evaporator coil is essential for efficient cooling in residential systems. The design includes a galvanized cabinet that minimizes corrosion and insulation that prevents energy loss.

Product Information

Standard Information

• Brand: Goodman
• MPN: CHPTA3630B3

Technical Specifications

• Product Line: CHPTA
• Coil Type: A Coil
• Configuration: Horizontal
• Casing: Cased
• Cooling Capacity: 3.0 Tons
• Cooling BTU: 36000 BTU
• Refrigerant Type: R-32
• TXV Installed: Yes
• Suction Line Size (OD): 7/8 Inches
• Liquid Line Size (OD): 3/8 Inches
• Cabinet Width: 17.5 Inches
• Height: 17.5 Inches
• Width: 30 Inches
• Depth: 21 Inches
• Weight: 51 Pounds
• Shipping Weight: 66 Pounds
• Certifications: AHRI, ETL, ISO
• Parts Warranty: 10 Limited Years
• Plenum Opening Width: 19 Inches
• Plenum Opening Height: 16.5 Inches
