Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Horizontal

Features

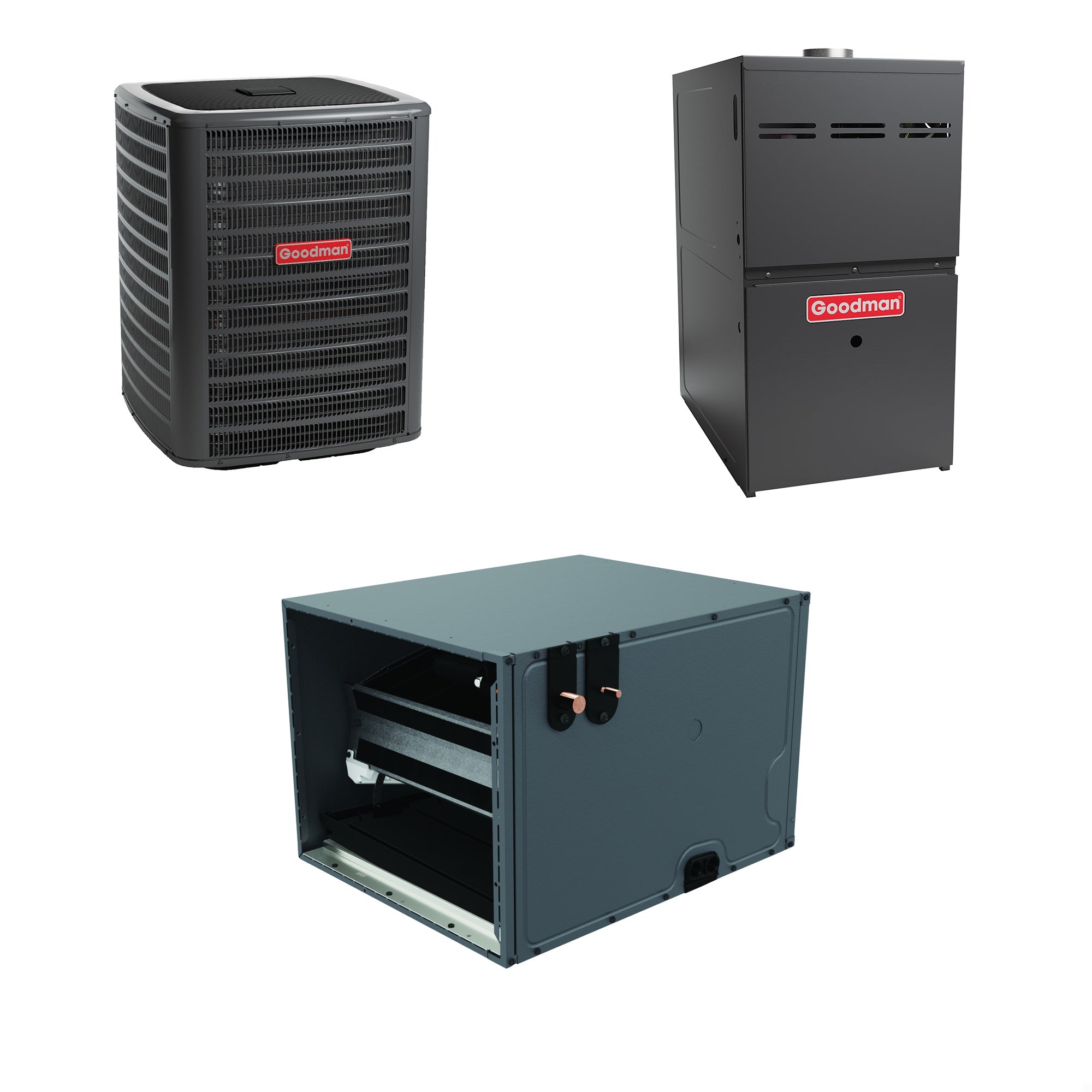

The Goodman GSXN403010 GM9C960803BN CHPTA3630B4 is a bundled system comprising a central air conditioner, a high-efficiency gas furnace, and a cased evaporator coil. This bundled system is designed for regions requiring moderate cooling and efficient heating, ensuring both ease of installation and durability. The included components are engineered for long-term performance and energy efficiency.

• All-Aluminum Coil for enhanced heat transfer
• Internal Thermostatic Expansion Valve for maintained refrigerant flow
• Condensate Management with UV-resistant drain pan
• Advanced Heat Exchanger Design for efficient heat transfer
• Quiet Comfort with low sound levels
• Extended Warranty with registration

Product Highlights

This comprehensive HVAC system includes the GSXN4 air conditioner, GM9C96 furnace, and CHPTA evaporator coil. Each component is designed with a focus on craftsmanship and the ease of integration, ensuring that your home achieves optimal comfort efficiently. These components are sold together but function as individual parts, contributing to the overall system’s performance.

Product Information

Standard Information

• All-Aluminum Coil: Goodmans evaporator coils use a reliable all-aluminum design with fins and grooved tubes, maximizing surface area and heat transfer efficiency.
• Internal Thermostatic Expansion Valve: The CHPTA includes a factory-installed internal thermostatic expansion valve to streamline installation and maintain ideal refrigerant flow.
• Condensate Management: The CHPTA features foil-faced insulation to inhibit condensate formation and a UV-resistant drain pan with secondary drain connections.
• Advanced Heat Exchanger Design: The GM9C96 furnace employs an aluminized-steel tubular heat exchanger with a wrinkle-bend for enhanced dependability and longevity.
• Quiet Comfort: The blower, motor, and gas valve of the GM9C96 are selected for low sound levels, offering nearly silent circulation.
• Extended Warranty: Goodman provides a 10-year limited parts warranty upon product registration within 60 days of installation.

Component Details

Goodman GSXN403010 Air Conditioner

The Goodman GSXN4 air conditioner incorporates a reliable single-stage, high-efficiency compressor and features an all-aluminum coil design for enhanced heat transfer. This unit is designed to operate quietly and efficiently, making it a robust solution for cooling needs.

• Capacity: 2.5 Tons
• Cooling BTU: 30000 BTU
• SEER2: 14.3
• Energy Star Listed: No
• Compressor Warranty: Lifetime

Goodman GM9C960803BN Gas Furnace

The Goodman GM9C96 gas furnace features a two-stage heating system that ensures optimal comfort and efficiency. It includes an aluminized-steel tubular heat exchanger and a secondary heat exchanger made of corrosion-resistant stainless steel. This furnace is designed for low noise operation and offers multiple venting options for flexible installation.

• AFUE: 96%
• Heating BTU: 80000
• Configuration: Upflow/Horizontal
• Blower Motor Type: ECM Multi-Speed
• Heat Exchanger Warranty: Lifetime

Goodman CHPTA3630B4 Cased Evaporator Coil

The CHPTA cased evaporator coil is designed with an all-aluminum construction and includes a thermostatic expansion valve. It features foil-faced insulation and a UV-resistant drain pan, making it durable and efficient in managing condensate.

• Capacity: 3.0 Tons
• Cooling BTU: 36000 BTU
• Configuration: Horizontal
• TXV Installed: Yes
• ETL Listed: Yes
