Product Description

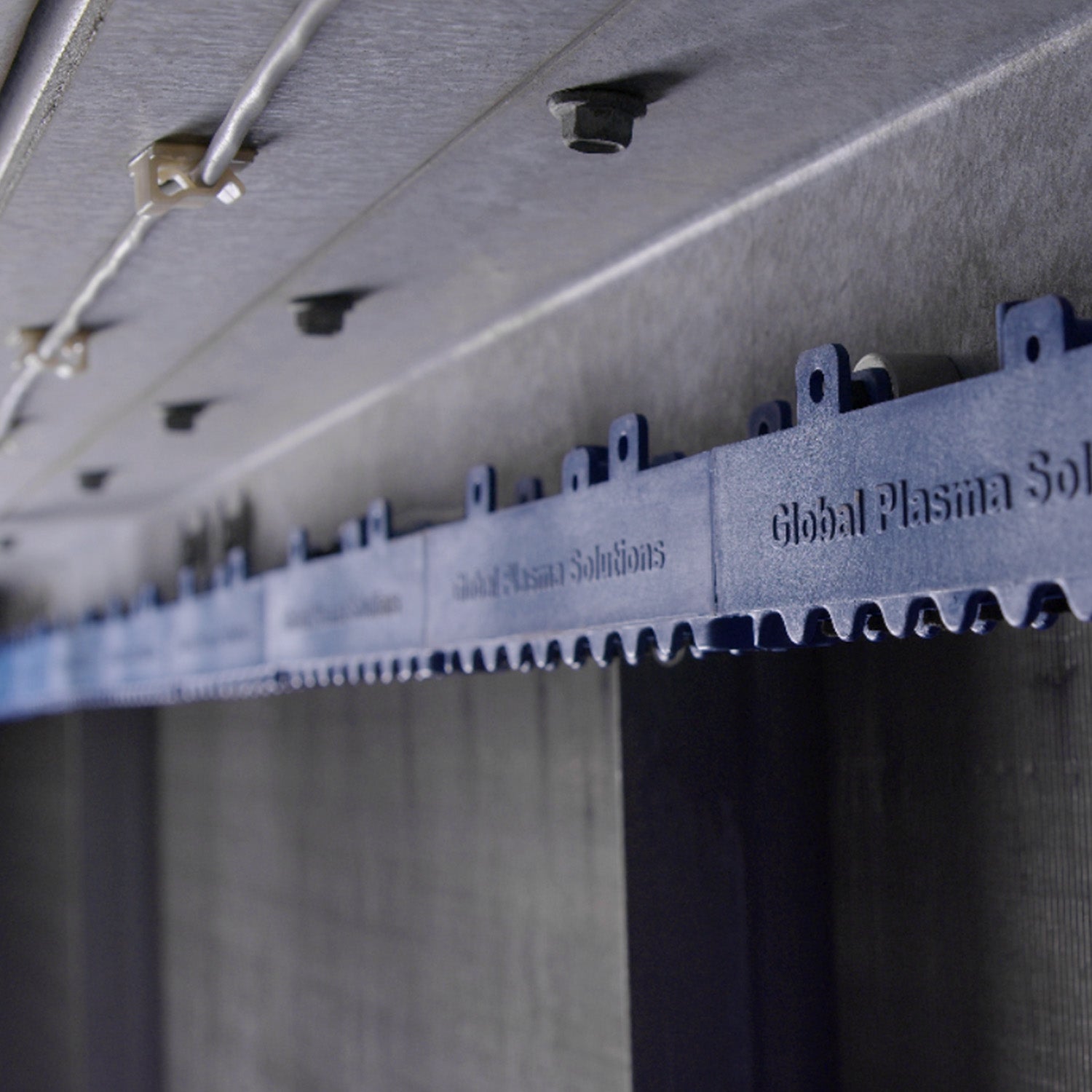

The Global Plasma Solutions GPS-IMOD-60-SNAP is a modular ionization system that focuses on coil cleaning. Using NPBI technology, it generates an abundance of ions to enhance air quality. The system is designed for field assembly, providing flexible coverage in six-inch increments, suitable for various applications.
- Modular coil cleaning system for HVAC systems.
- Total Ion Output: more than 140 million ions per cubic centimeter per inch of bar.
- Adjustable assembly allows for customized configurations.
Product Highlights
This system is essential for maintaining cleaner coils, which can lead to improved system efficiency in HVAC units.
Product Information
Standard Information
-
Brand: Global Plasma Solutions
-
Model: GPS-IMOD-60-SNAP
Technical Specifications
-
Ionizer Total Ion Output: >140 million ions per cc per inch of bar
-
Power Unit Dimensions: 9 inches long × 3.25 inches wide × 4.75 inches high
-
Power Unit Weight: 4.63 lbs
-
Ionizer Bar Dimensions: 1.6 inches high × 0.75 inches wide, Length = 6.0 inches per section + 1.2 inches (144 Max)
-
Ionizer Bar Weight: 0.24 lbs per section
-
Input Voltage: 24/120/208-240 VAC
-
Output Voltage: 5 kV RMS
-
Output Current: 0.500A/0.120A/0.065A
-
Power Consumption: 12W (standard), 15W (cleaning cycle)
-
Frequency: 50/60Hz
-
Electric Approvals: UL, cUL
-
Power Entry: UL Listed, Line Cord with 3-Prong Plug
-
Compliance & Certifications: UL 2998, UL 867, IAQP, OSHPD Seismic (OSP), CE, CARB
-
Operating Temperature: -20°F to 140°F
-
Humidity Range: 0-100% RH
