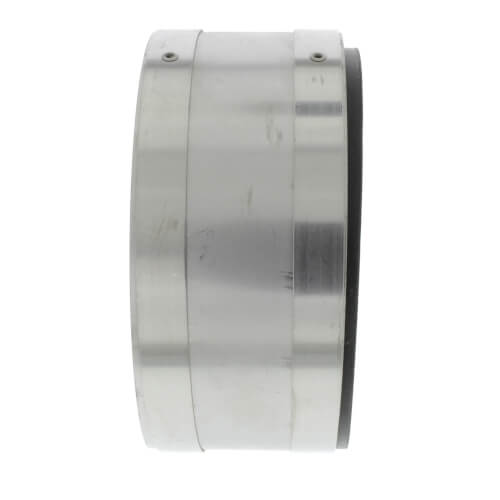

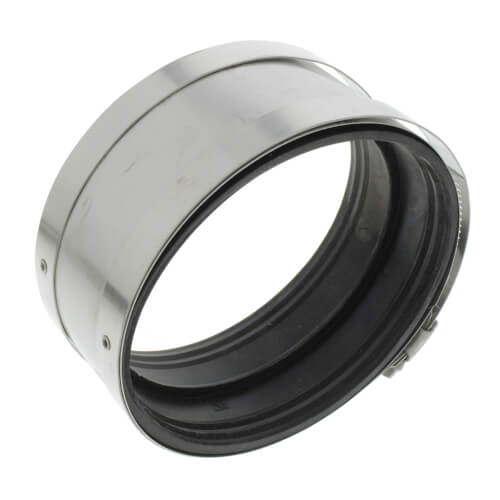

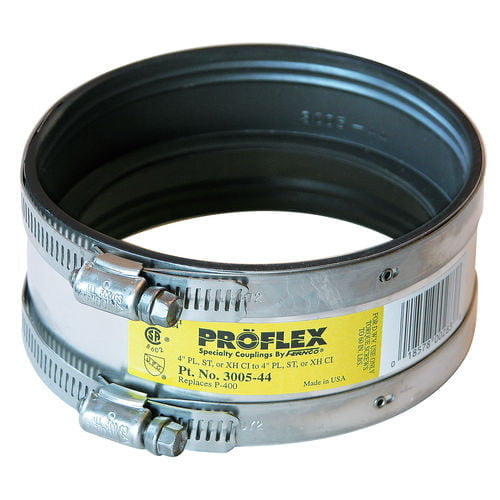

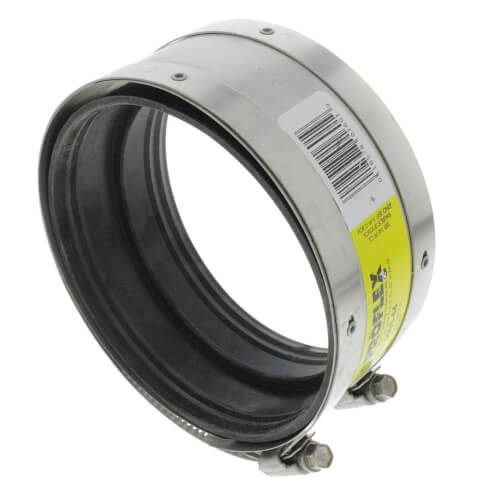

FRENCO 3005-44 Proflex Shielded Transition Coupling

Product Description

The FRENCO 3005-44 is a Proflex shielded transition coupling for connecting various types of pipes. It allows for seamless connections between PVC, steel, or extra-heavy cast iron pipes, making it ideal for a range of plumbing applications. This coupling boasts a robust stainless steel shield and clamp bands that ensure secure connections, especially in demanding environments.

• Connects PVC, steel, or extra-heavy cast iron pipes.
• Features a stainless steel shield for shear resistance.
• Accommodates pipe diameters from three-quarters of an inch to eight inches.

Product Highlights

This coupling is suitable for above-ground use, creating rigid pipe joints that withstand significant stress. It is engineered for utility in systems requiring a reliable and durable connection.

Product Information

Standard Information

• Brand: FRENCO
• MPN: 3005-44

Technical Specifications

• Size: 4 x 4
• Gasket Material: Neoprene
• Shield Material: 301 Stainless Steel
• Clamp Band Material: 301 Stainless Steel
• Installation Torque: 60 lbs.
• Maximum Test Pressure: 4.3 PSI (29.6KPA)
• Maximum Operating Temperature: 180°F
• Conforms To: ASTM C1460, ASTM C564, CSA B602
