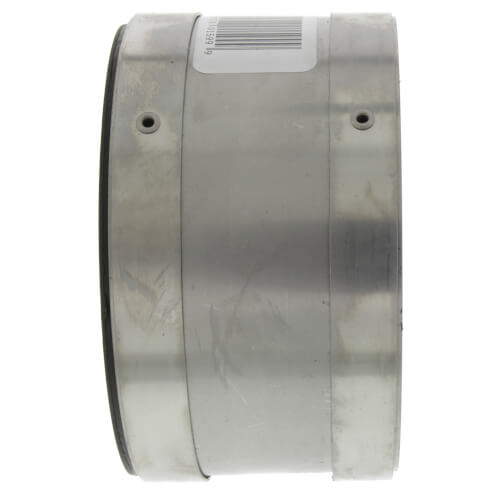

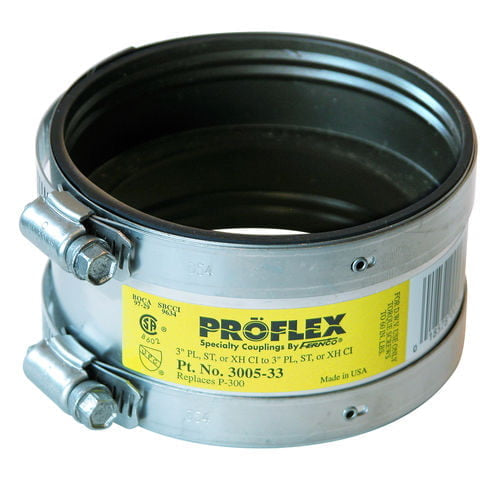

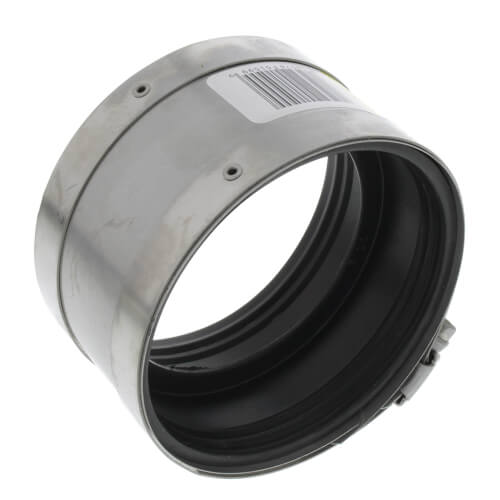

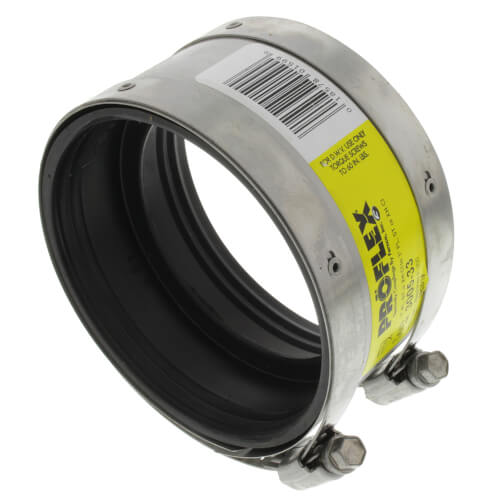

FRENCO 3005-33 Proflex Shielded Transition Coupling

Product Description

The FRENCO 3005-33 Proflex coupling is engineered for above-ground applications. This transition coupling connects various pipe types securely. It provides resistance to shear forces, resulting in a durable and reliable joint. The coupling effectively connects plastic, steel, or extra-heavy cast iron pipes. It is appropriate for use in drain, waste, and vent systems.

• Compatible with plastic, steel, or extra-heavy cast iron.
• Includes a stainless steel shield.
• Features stainless steel clamp bands for secure connections.

Product Highlights

This coupling is designed for reliable pipe connections in challenging environments.

Product Information

Standard Information

• Size: 3 inches x 3 inches

Technical Specifications

• Gasket Material: Neoprene
• Shield Assembly Material: All 300 Series Stainless Steel
• Clamp Band Material: 301 Stainless Steel
• Installation Torque: 60 lbs.
• Maximum Test Pressure: 4.3 PSI (29.6KPA)
• Maximum Operating Temperature: 180 degrees Fahrenheit
• Conforms To: ASTM C1460, ASTM C564, CSA B602
• Dimension A: 3.50 inches
• Dimension B: 3.56 inches
• Dimension C: 2.13 inches
