Frenco 3001-43 Proflex Coupling 4 inches x 3 inches

Product Description

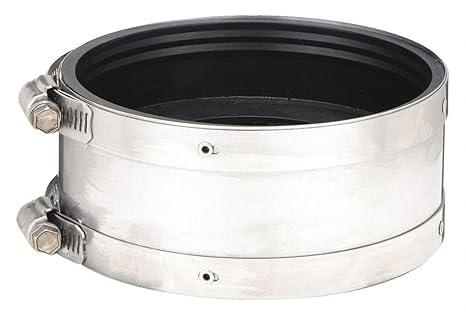

The Frenco 3001-43 Proflex Coupling is a transition pipe coupling that connects four-inch cast iron pipe to three-inch copper pipe. This coupling is designed to withstand shear forces for reliable performance in above-ground applications.

• Resistant to shear forces for robust connections.
• Compatible with 4-inch cast iron and 3-inch copper pipes.
• Constructed with high-quality stainless steel components.

Product Highlights

The Frenco 3001-43 provides a reliable and sturdy connection between different pipe materials, crucial for effective plumbing work.

Product Information

Standard Information

• Product Type: Shielded Coupling
• Brand: Frenco

Technical Specifications

• Part Number: 3001-43
• Dimension A: 4.36 inches
• Dimension B: 3.07 inches
• Dimension C: 2.13 inches
• Supported Connections: Cast Iron to Copper
• Application: Above Ground
• Material: Neoprene
• Connection Size: 4 inches x 3 inches
• Length: 2.13 inches
• Temperature Rating: -30 to 180 degrees F
• Gasket Material: Synthetic Rubber
• Clamp Material: 301 stainless steel
• Installation Torque: 60 inch lbs.
• Maximum Test Pressure: 4.3 PSI
• Codes & Standards: ASTM C1460, ASTM C564, CSA B602
