FRENCO 1002-88RC Strong Back PVC Shielded Coupling 8 x 8

Product Description

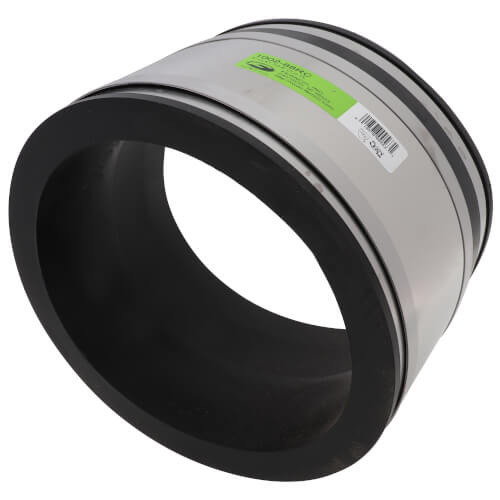

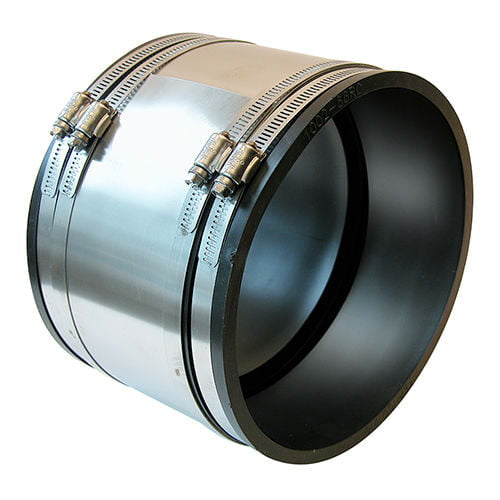

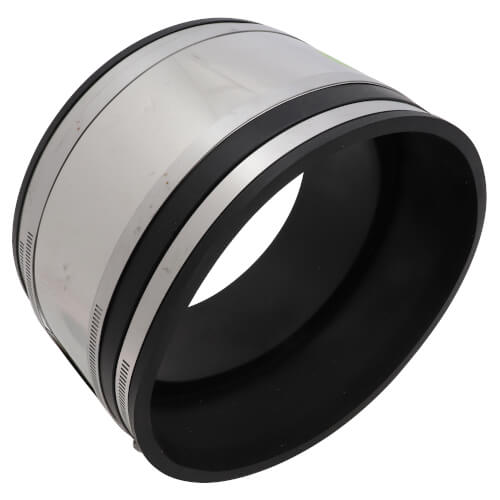

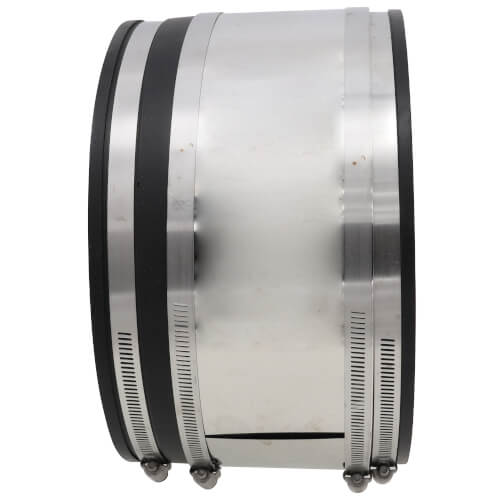

The FRENCO 1002-88RC is an eight by eight inch Strong Back PVC Shielded Coupling. This coupling connects clay, cast iron, plastic, copper, steel, or lead pipes. It resists heavy earth loads and shear forces while improving pipe alignment. It is suitable for various applications where secure connections are required.

• Size: 8 inches x 8 inches
• Torque: 60 lb-in
• Maximum temperature: 140 degrees Fahrenheit

Product Highlights

This coupling is made from elastomeric polyvinyl chloride wrapped in 300 Series Stainless Steel, ensuring durability and stability under heavy conditions.

Product Information

Standard Information

• Type: Coupling
• Material: Polyvinyl Chloride, Stainless Steel

Technical Specifications

• Product Type: Coupling
• Min Temperature (F): -30 degrees
• Max Temperature (F): 140 degrees
• Dimension A - inches: 9.76
• Dimension B - inches: 8.57
• Dimension C - inches: 5.96
• Brand: Fernco
• Number of Pieces: 1
• Item Package Quantity: 1
• Batteries Required?: No
• Clamp Housing: 301 Stainless Steel
• Clamp Band: 301 Stainless Steel
• Clamp Screw: 305 Stainless Steel
• Maximum Operating Temperature: 140 degrees Fahrenheit
• Maximum Test Pressure: 4.3 PSI
