Product Description

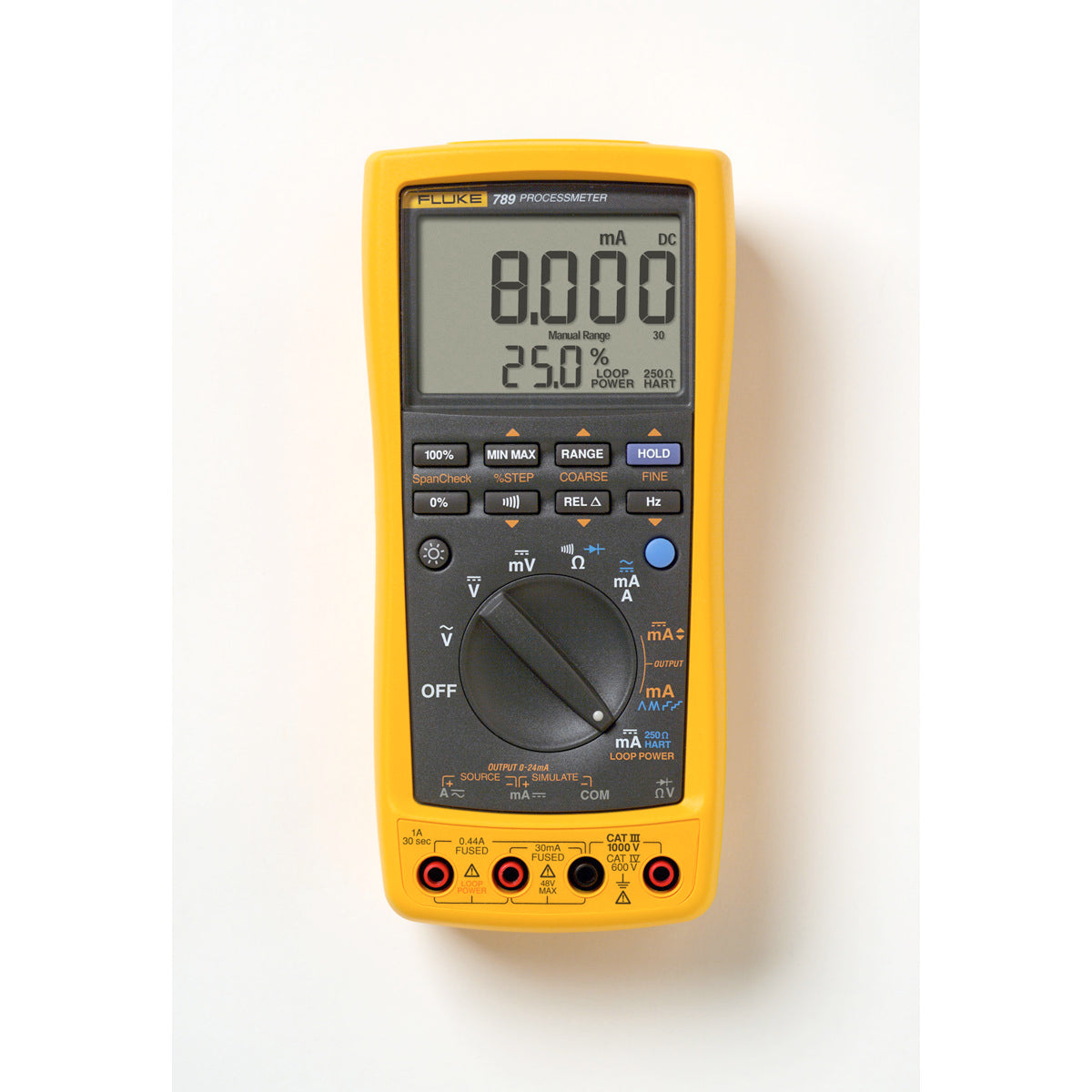

The Fluke 789 is a digital multimeter and loop calibrator designed for process technicians. It combines advanced measurement capabilities and a built-in 24-Volt loop power supply, allowing for efficient testing of process instruments.
- Built-in 24-Volt loop supply
- Large dual display for easy reading
- Enhanced backlight with adjustable brightness
Product Highlights
This device simplifies testing by combining multiple functions into one tool. Its dual display shows both the current and percentage of span simultaneously, while the HART mode enhances its functionality for process diagnostics.
Product Information
Standard Information
-
Manufacturer: Fluke
-
Model Number: FLUKE-789
Technical Specifications
-
Product Type: Process Meter
-
Measurements: AC Voltage, DC Voltage, AC Current, DC Current, Resistance, Frequency
-
Power Source: Battery
-
Maximum AC Current Measurement: 1A
-
Maximum AC Voltage Measurement: 1000V
-
Display Type: Dual Large Display
-
Dimensions: 7.35 inches x 3.41 inches x 1.25 inches
-
Safety Category: CAT III 1000 V; CAT IV 600 V
-
Accuracy: 0.1% and 1% for various functions
-
Operating Temperature: -20°C to +55°C
