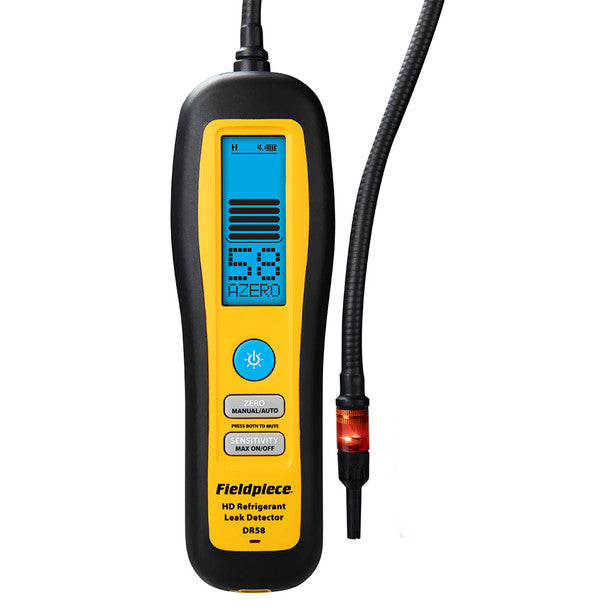

FIELDPIECE FP-DR58 Heated Diode Refrigerant Leak Detector

Product Description

The FIELDPIECE FP-DR58 Heated Diode Refrigerant Leak Detector is designed to help HVAC professionals identify refrigerant leaks in various systems. This device detects HFC, CFC, HCFC, HFO, and blended refrigerants with precision.

• Detects leaks as small as 0.03 oz/yr
• Adjustable sensitivity levels: high, medium, and low
• Approximately 18 hours of battery life

Product Highlights

This detector features an intuitive design with visual and audible alerts for effective leak detection in different environments.

Product Information

Standard Information

• Battery Type: 3.7 VDC 2600mAh, non-replaceable
• Sensor Type: Heated Diode

Technical Specifications

• Sensor Life: 300 hours typical
• Sensitivity Levels: High, medium, low (selectable)
• Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
• Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
• Response Time: Less than 1 second typical
• Recovery Time: Less than 10 seconds typical
• Charge Time: 6 hours typical with included charger
• Auto Power Off: 10 minutes without detection or button press
• Operating Environment: 32°F to 104°F (0°C to 40°C); less than 75% RH non-condensing
• Storage Temperature: -4°F to 140°F (-20°C to 60°C); less than 80% RH
• Weight: 14 oz (400g)
• Resistances: Designed to IP54
• Water Resistance: Designed to IP54
