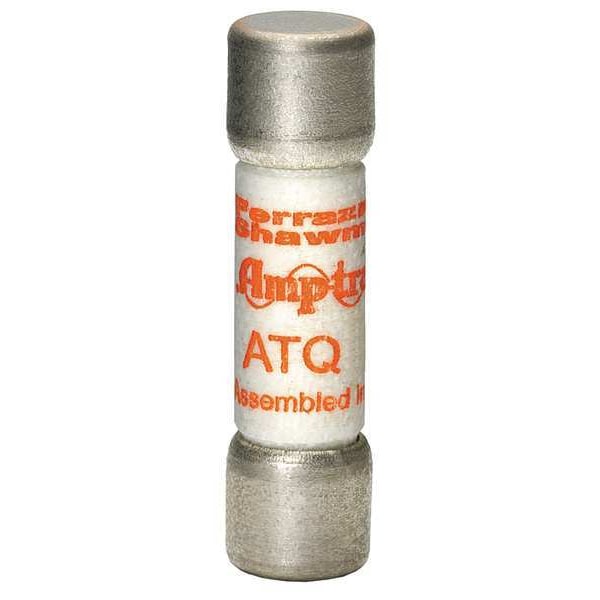

FERRAZ SHAWMUT ATQ30 Power Circuit Protection Fuse

Product Description

The FERRAZ SHAWMUT ATQ30 is a reliable midget time-delay fuse. It provides supplemental protection for electrical circuits. This fuse operates at a voltage of up to five hundred volts AC and is available in various amperage ratings from one-tenth to thirty amps. It is designed for circuits with a maximum short circuit current of ten thousand amps.

• Rated for applications up to five hundred VAC
• Time delay of twelve seconds at two hundred percent rating
• Ideal for circuits with high inrush currents

Product Highlights

The ATQ30 fuse is effective for protecting sensitive equipment from overloads while allowing for temporary surges in current.

Product Information

Standard Information

• Manufacturer Part Number: ATQ30
• UPC: 782001904630

Technical Specifications

• AC Voltage: 500 VAC
• Interrupting Rating: 10 kA
• Time Delay: 12 seconds at 200% rating
• Frequency: 50/60 Hz
• Ampere Rating: 30 A
• RoHS Compliant: Yes
• Type: AC
• Fuse Class: Midget
• Speed/Characteristic: Time Delay
• Mounting Type: Clip
• Terminal Material: Tin-Plated Copper
• Terminal Type: Ferrule
• Product Diameter: 0.41 inches
• Product Length: 1.5 inches
• Product Weight: 0.014 lb
• Body/Insulating Material: GMG
