Product Description

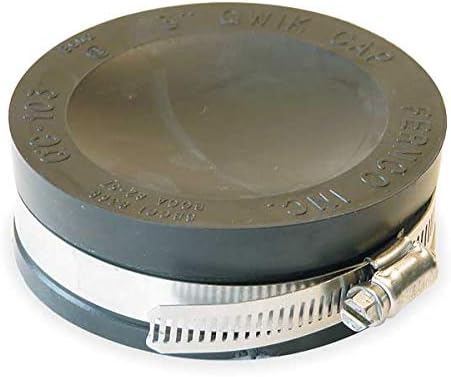

The Fernco QC-103 Flexible Cap is designed for use with three inch pipes. It is constructed from flexible PVC, making it suitable for both above-ground and underground applications. This cap provides a reliable method to seal pipe ends, cleanouts, and to test pipes. Installation is simple; place the cap over the pipe end and tighten to sixty inch-pounds of torque. It is important to hand tighten when working with corrugated pipes.
- Fast and easy installation.
- Can be used as a permanent or temporary cap.
- Fits plastic, cast iron, copper, and steel pipes.
Product Highlights
The flexible material allows the cap to handle pressure and minimize ballooning during tests.
Product Information
Standard Information
-
Material: PVC
-
Size: 3 inches
Technical Specifications
-
Length: 1.394 inches
-
Dimensions: 3.951 inches
-
Temperature Rating: -30 to 180 degrees Fahrenheit
-
Pressure Rating: 4.3 psi
-
Installation Torque: 60 inch-pounds
-
Band Material: 300 series stainless steel
-
Standards Compliance: ASTM D 5926
-
Use Cases: Capping pipe ends, testing pipes, and cleaning out
