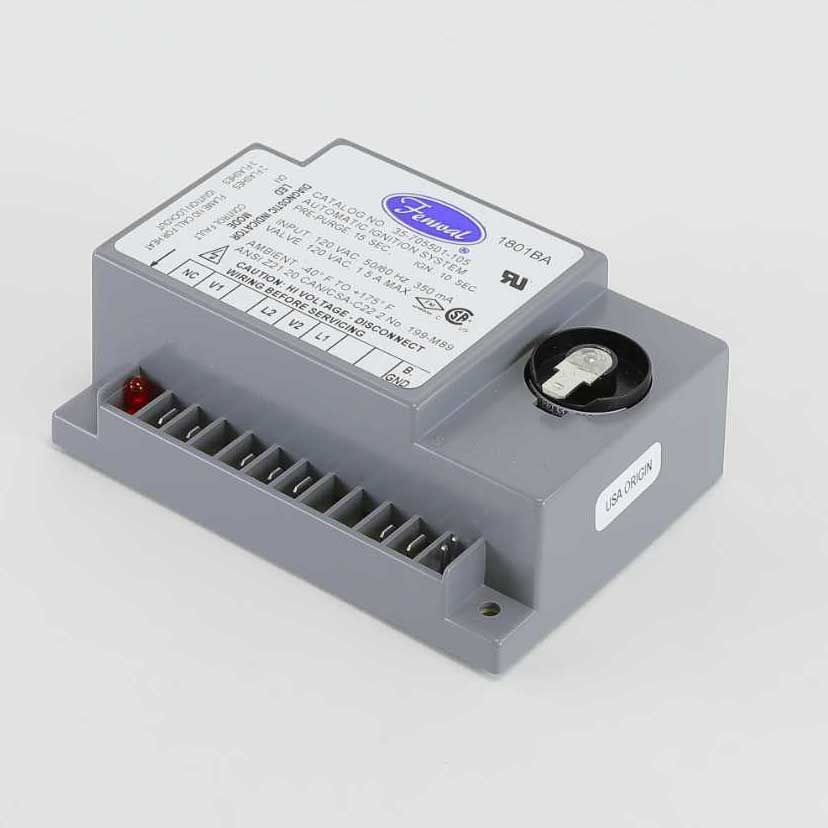

Fenwal 35-705501-105 Direct Spark Ignition Control 120V with 15 Sec Prepurge

Product Description

The Fenwal 35-705501-105 is a high-efficiency direct spark ignition control designed for reliable performance in various gas-fired equipment applications. This model operates on 120 volts and features a 15-second prepurge with a 10-second trial for ignition.

• Optimized for natural, LP, or manufactured gas
• Microprocessor-controlled with diagnostic LED for troubleshooting
• Durable design offers multiple enclosure configurations

Product Highlights

The Fenwal ignition control is notable for its robust build and versatile features which ensure safety and longevity. It supports various flame sense options and has a comprehensive temperature range from -40 degrees Fahrenheit to 175 degrees Fahrenheit.

Product Information

Standard Information

• Product Type: Ignition Control
• Ignition Type: Direct Spark
• Flame Sense: 1 mA Minimum
• Temperature Range (F): -40 to 175
• Voltage: 120v

Technical Specifications

• Gas Type: Natural, LP, or Manufactured
• Control Options: 1 and 3 tries for ignition
• Enclosure Options: Case and Cover, Open Board, Potted
• Wiring Options: Quick connects and multi-pin connector
